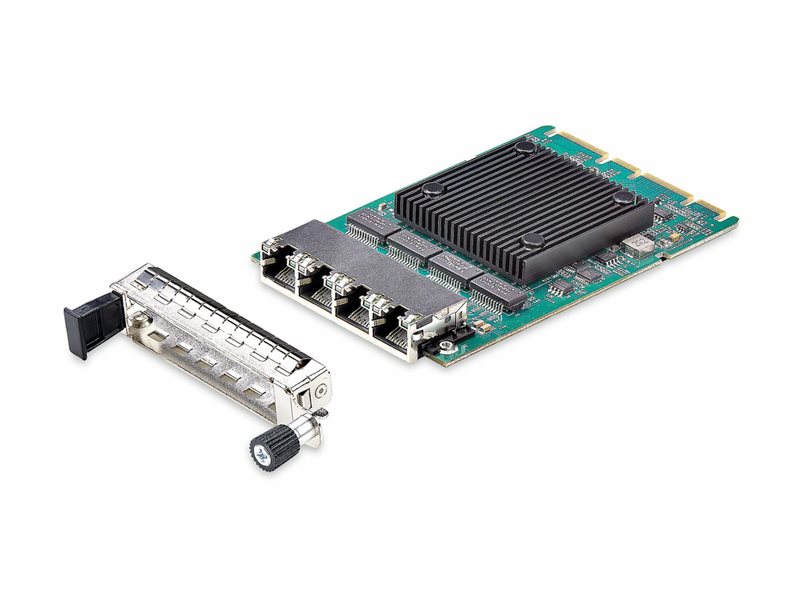

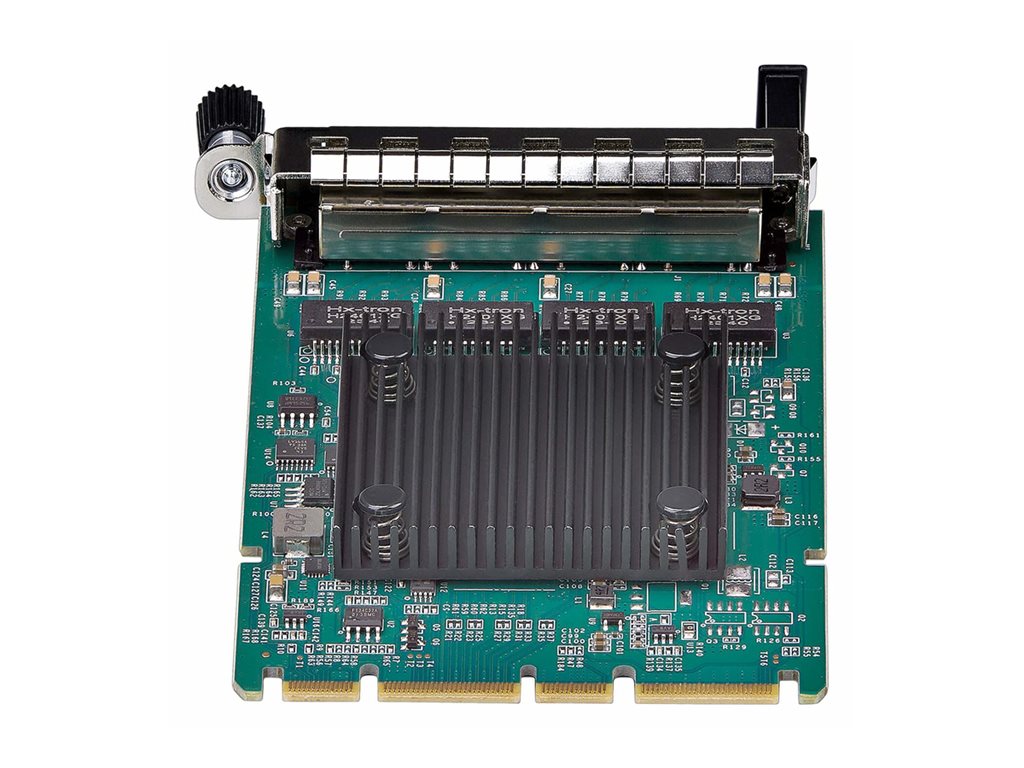

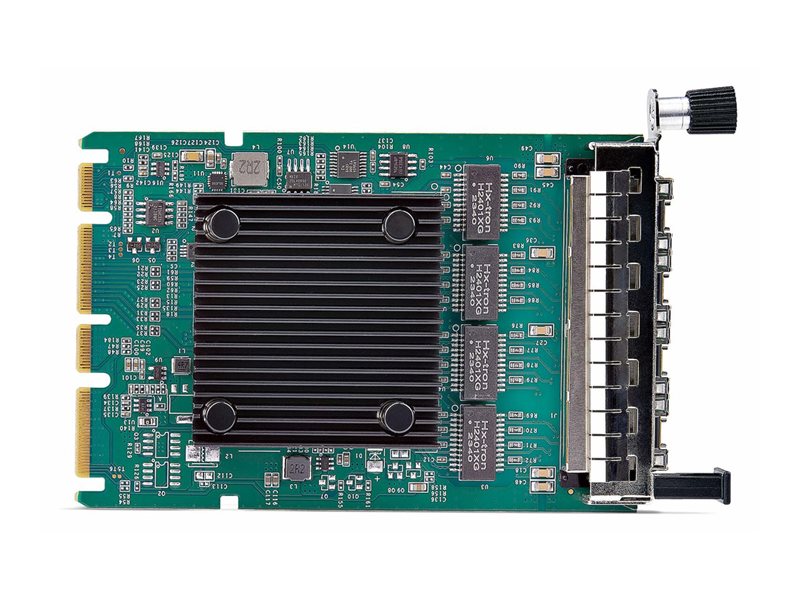

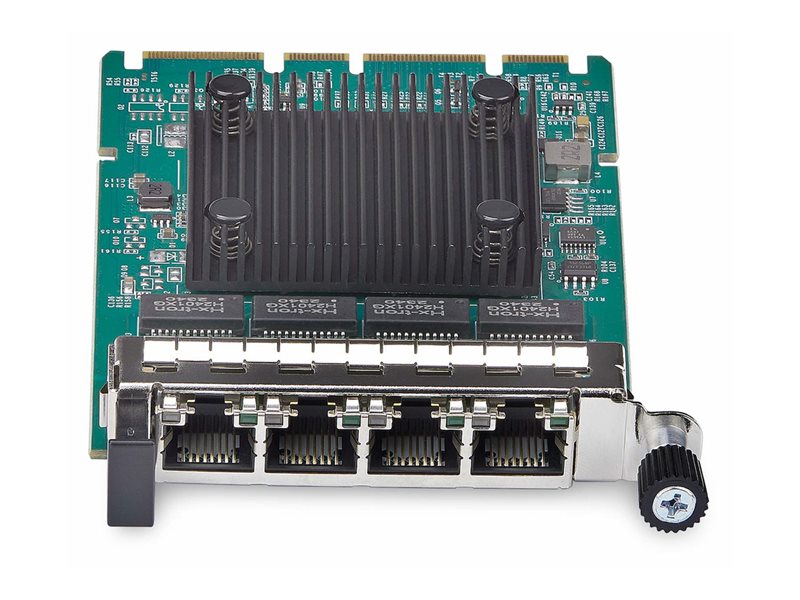

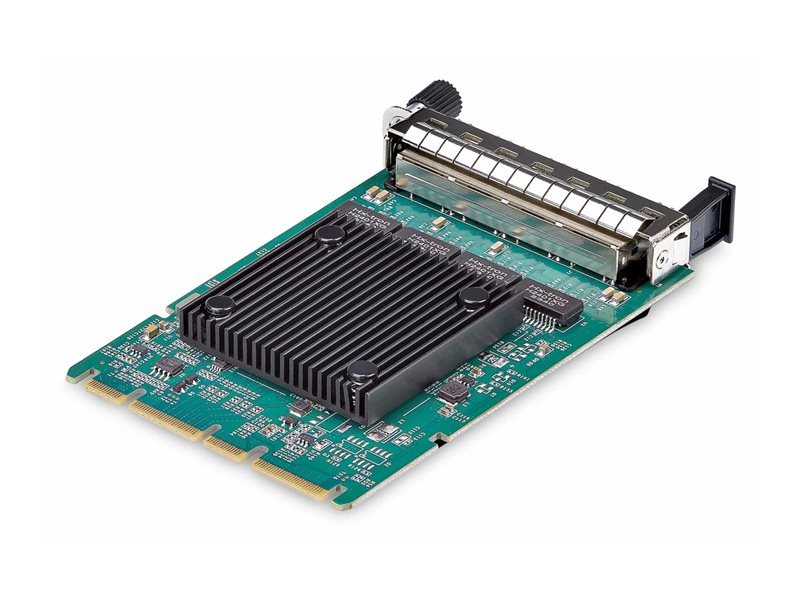

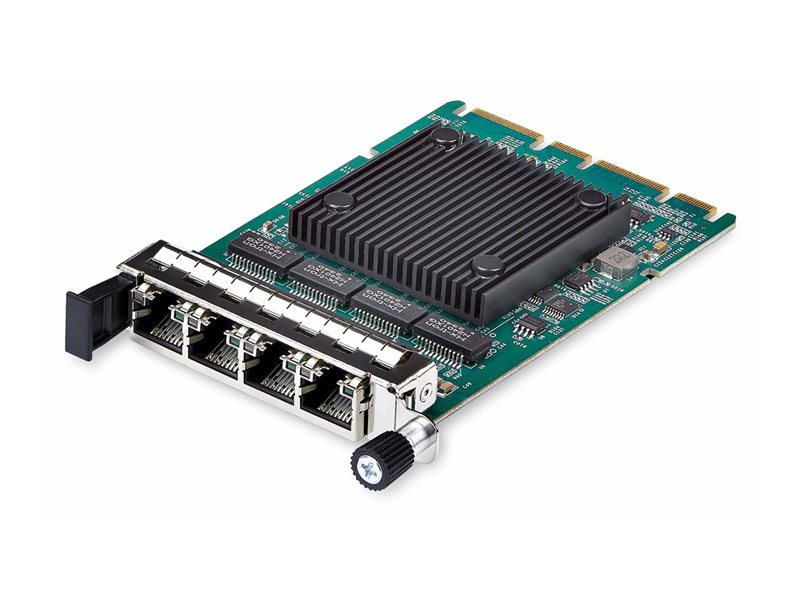

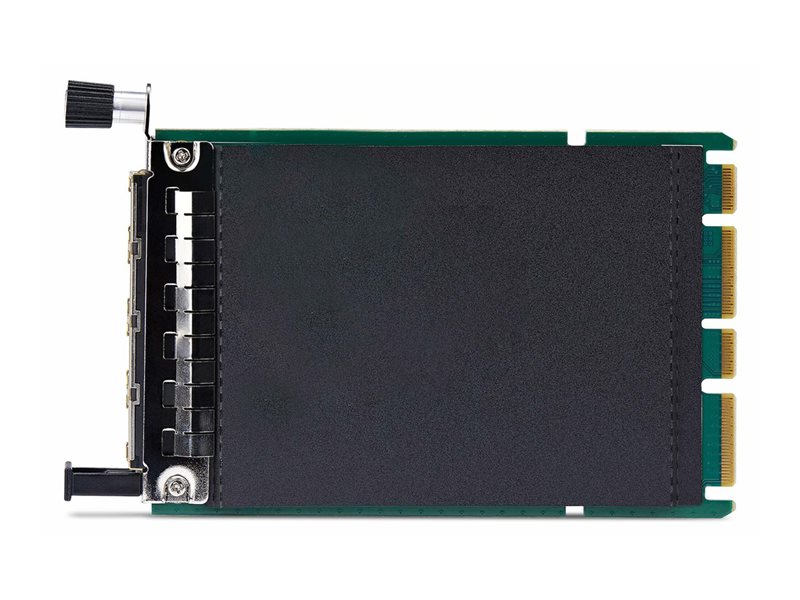

StarTech.com - StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card, Intel I350
Network adapter - OCP 3.0 - Gigabit Ethernet x 4 - silver, green - for P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL
StarTech.com
OR41GI-NETWORK-CARD
0065030908146
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card, Intel I350 - network adapter - OCP 3.0 - Gigabit Ethernet x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | Gigabit Ethernet x 4 |
| Dimensions (WxDxH) | 3.3 in x 5.2 in x 0.6 in |
| Weight | 3.53 oz |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 330 ft |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Processor | Intel I350-AM4 |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002 |
| Color | Silver, green |
| System Requirements | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.4.x or later (LTS versions only), VMware ESXi 7.x |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | WEEE, RoHS |
| Color | Silver, green |
| Networking | |
| Ports | Gigabit Ethernet x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 330 ft |
| Capacity | Jumbo frame size: 9000 |
| Status Indicators | Link/activity, link/speed |
| Features | Intel vPro Technology support, PXE boot, VLAN support, SR-IOV, hot swappable, EEE, auto-negotiation, WOL, built-in heatsink, flow control, QoS, Link Aggregation, auto-uplink (auto MDI/MDI-X), full duplex capability, promiscuous mode, bus powered |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002 |
| Power | |
| Power Consumption Operational | 4.65 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.4.x or later (LTS versions only), VMware ESXi 7.x |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% RH |
| Processor / Memory | |
| Processor | Intel I350-AM4 |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 5.2 in |
| Height | 0.6 in |
| Weight | 3.53 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.7 in |
| Shipping Depth | 8.6 in |
| Shipping Height | 1.4 in |
| Shipping Weight | 6 oz |
| Compatibility Information | |
| Designed For | P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL |
