75" Diagonal Class WAD Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160 - space gray
Main Specifications | |
---|---|
Product Description | Samsung Interactive Display WA75D WAD Series - 75" LED-backlit LCD display - 4K - for education / business |
Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch) |
Diagonal Class | 75" |
Commercial Use | Yes - education / business |
Color | Space gray |
Platform | Android |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
Video Interface | HDMI, USB-C |
HDMI Ports Qty | 3 ports |
Connectivity | Wi-Fi, LAN, Bluetooth |
Technology | ADS |
LCD Backlight Technology | LED backlight |
Image Aspect Ratio | 16:9 |
TV Tuner | No tuner |
Commercial Features | OPS Slot |
Picture Enhancements | 72% Color Gamut |
Storage Capacity | 64 GB |
USB | 5 ports |
Included Accessories | 2 touch double-sided pens |
Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 385 Watt |
Power Consumption Stand by | 0.5 Watt |
Dimensions (WxDxH) - without stand | 67.3 in x 3.5 in x 40.2 in |
Weight | 100.31 lbs |
General | |
Product Type | LED-backlit LCD flat panel display |
Power Consumption Operational | 385 Watt |
Diagonal Class | 75" |
Commercial Use | Yes - education / business |
Combined With | Built-in interactive whiteboard, touchscreen (multi touch) |
Series | WAD Series |
Platform | Android |
Operating System | Android OS 13 |
TV Tuner | No tuner |
TV Tuner Presence | No |
Video Interface | HDMI, USB-C |
HDMI Ports Qty | 3 ports |
Picture Enhancements | 72% Color Gamut |
Dimensions | Without stand |
Width | 67.3 in |
Depth | 3.5 in |
Height | 40.2 in |
Weight | 100.31 lbs |
Enclosure Color | Space gray |
Miscellaneous | |
Included Accessories | 2 touch double-sided pens |
Compliant Standards | BSMI, SASO, EMC, IRAM, IEC 60950-1, AS/NZS, JIS C 61000-3-2, EAC, IS13252, GB 17625.1-2012, INMETRO, NOM-019, IEC 62368-1, HDCP 2.2, CISPR 32, CNS13438:2006 Class A, UL 62368-1 Third Edition, EN 55035:2017/A11:2020, IEC 62368-1 Third Edition, KS C 9835, KS C 9832, TUV low blue light, TUV flicker free, EN 55035:2017+A11:2020, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 55032:2015 + A11:2020, GB 9254-2021, EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A1:2019/A2:2021, Part 15 Subpart B Class A, J55032, VCCI-CISPR 32, EN 55032:2015/A11:2020/A1:2020, GB 4943.1-2022 PSB, K 62368, Google EDLA |
Power | |
Power Device | Power supply |
Input Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% |
Display | |
LCD Display Technology | ADS |
Pixel Pitch | 0.4296 mm |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | LED backlight |
Coating | 25% haze |
Dynamic Contrast Ratio | 1200:1 |
Brightness | 400 cd/m² |
Viewing Angle | 178° |
Viewing Angle (Vertical) | 178° |
Touchpoints Qty | 40 |
Response Time | 8 ms |
Commercial Features | OPS Slot |
Operation Hours / Days | 12 / 7 |
Additional Features | Picture in picture (no tuner) |
Connections | |

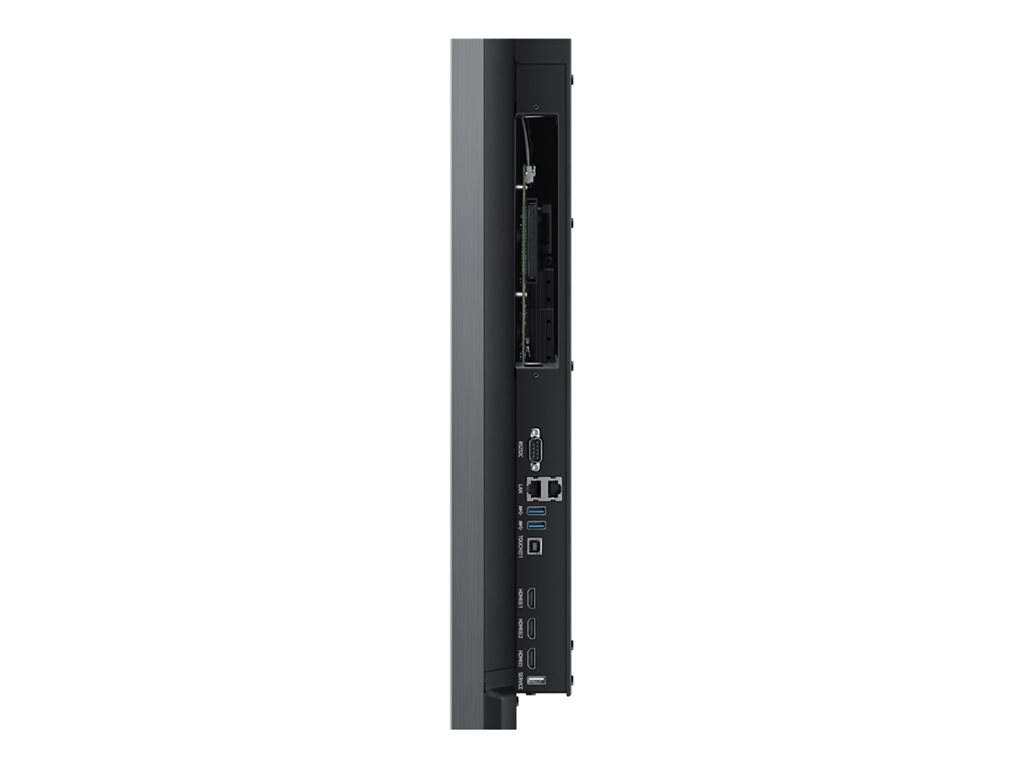

Connector Type | 3 x HDMI input ¦ RS-232 input ¦ RS-232 output ¦ Audio input ¦ USB 2.0 ¦ 4 x USB 3.0 ¦ LAN input ¦ Audio output ¦ LAN output ¦ IR receiver ¦ USB-C with 65W Power Delivery ¦ HDMI output |
Dimensions & Weight (Shipping) | |
Width (Shipping) | 73.3 in |
Depth (Shipping) | 8.9 in |
Height (Shipping) | 44.9 in |
Weight (Shipping) | 126.98 lbs |
Network & Internet Multimedia | |
Functionality | WEB browsing |
Connectivity | Wi-Fi, LAN, Bluetooth |
LAN Protocol | Ethernet |
Connect & Share | Screen Share |
Application Store | Google Play |
Stands & Mounts | |
Flat Panel Mount Interface | 800 x 400 mm |
VESA Compatibility | Yes |
Media Player | |
USB Port | Yes |
USB Ports Qty | 5 |
Configuration | 64 GB |
