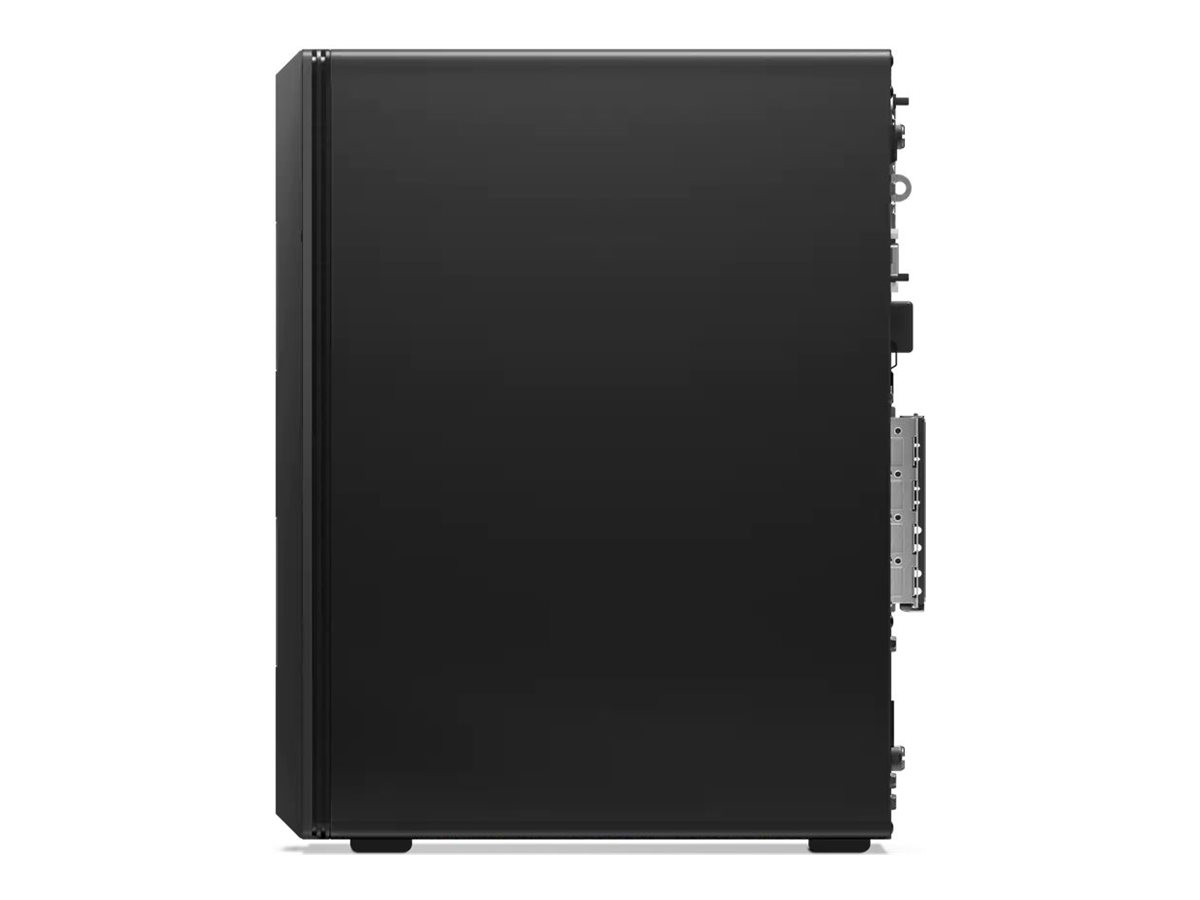

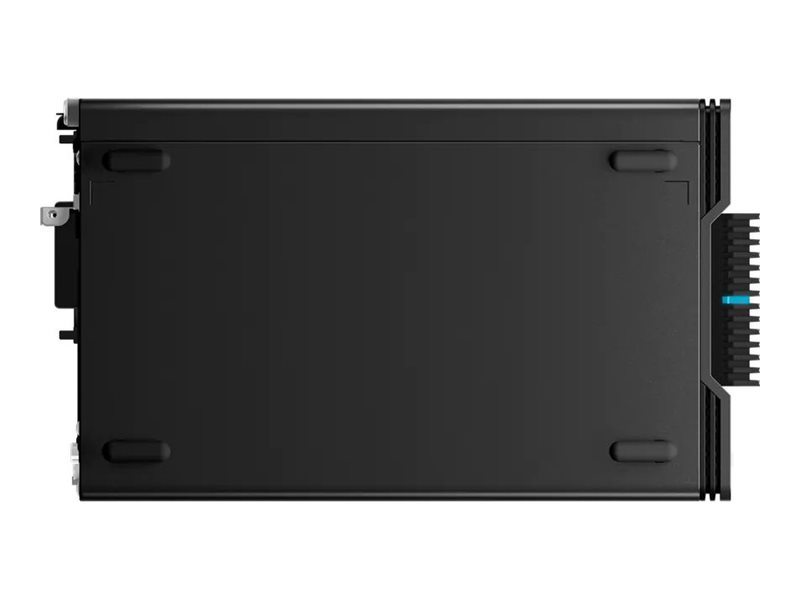

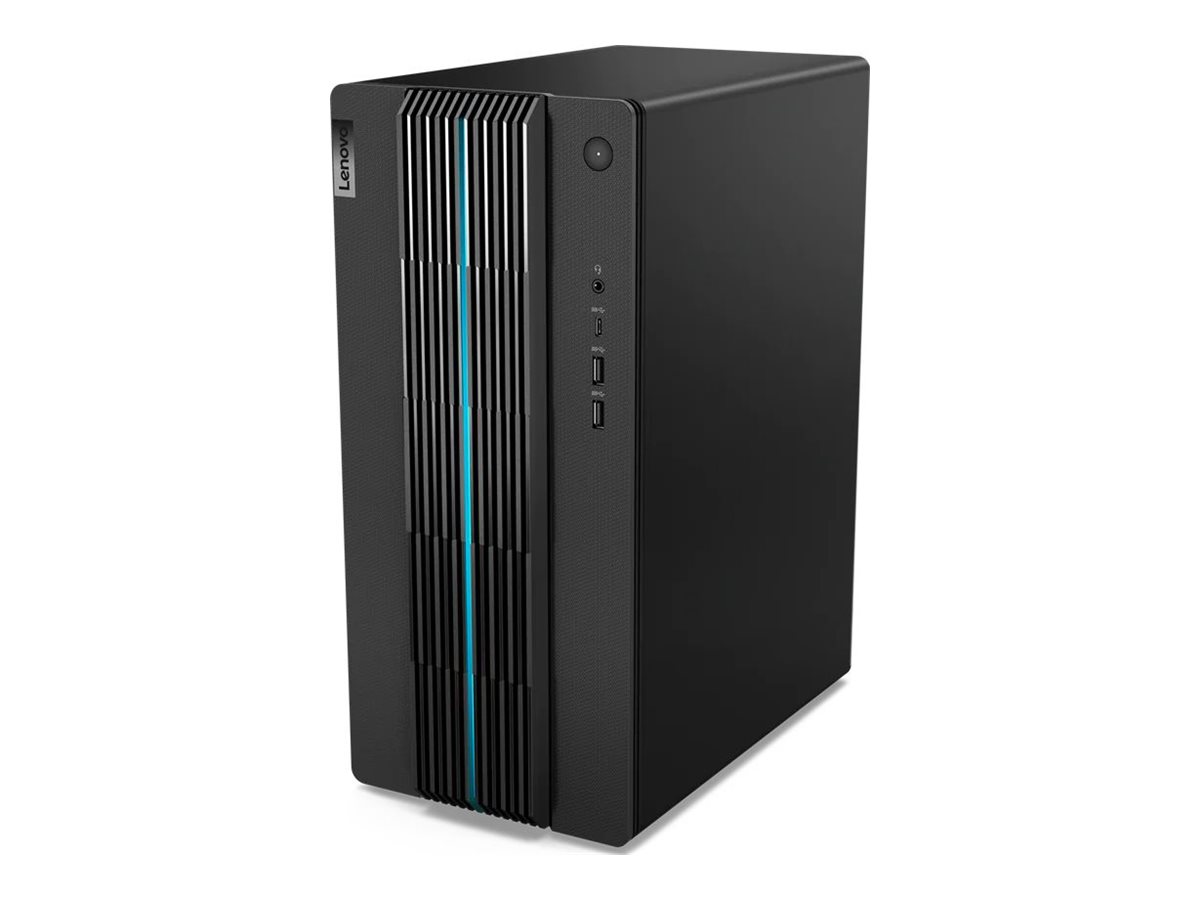

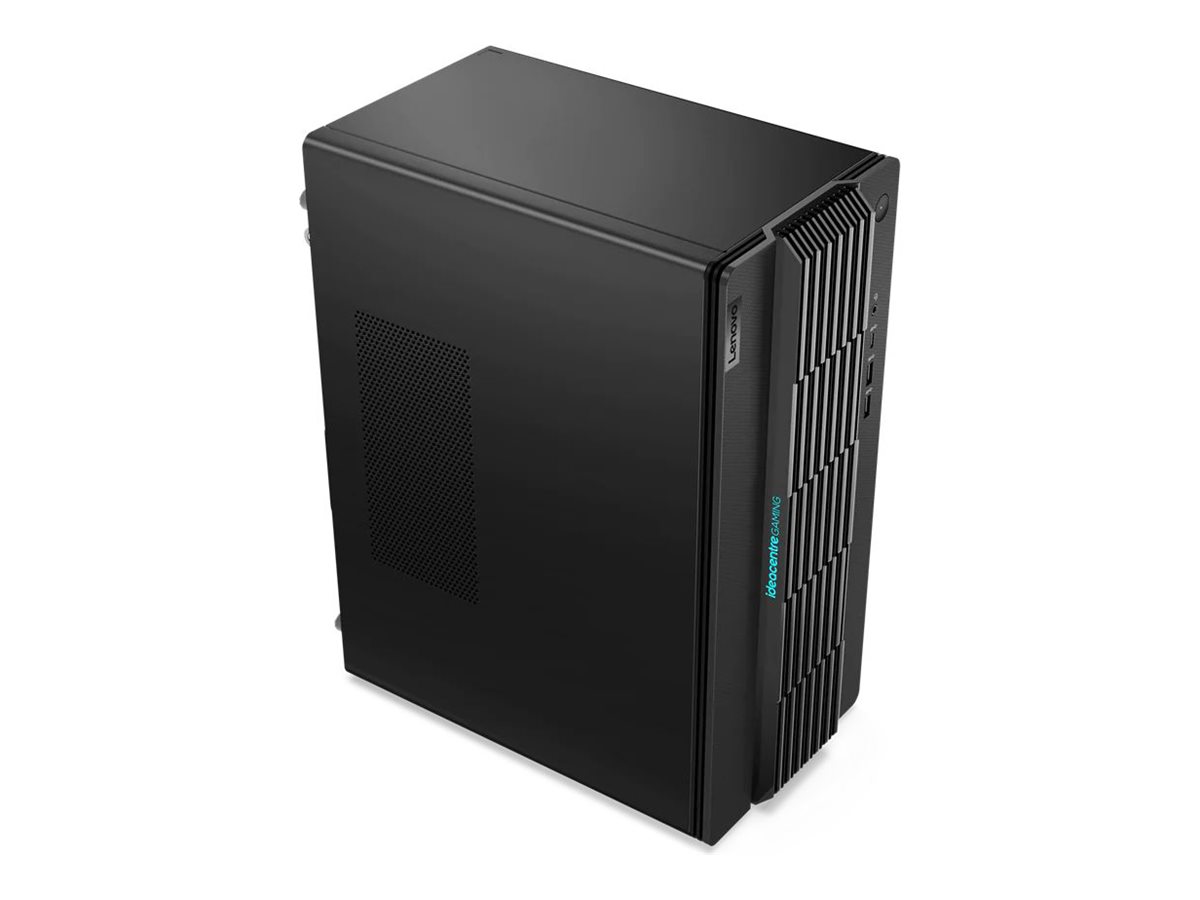

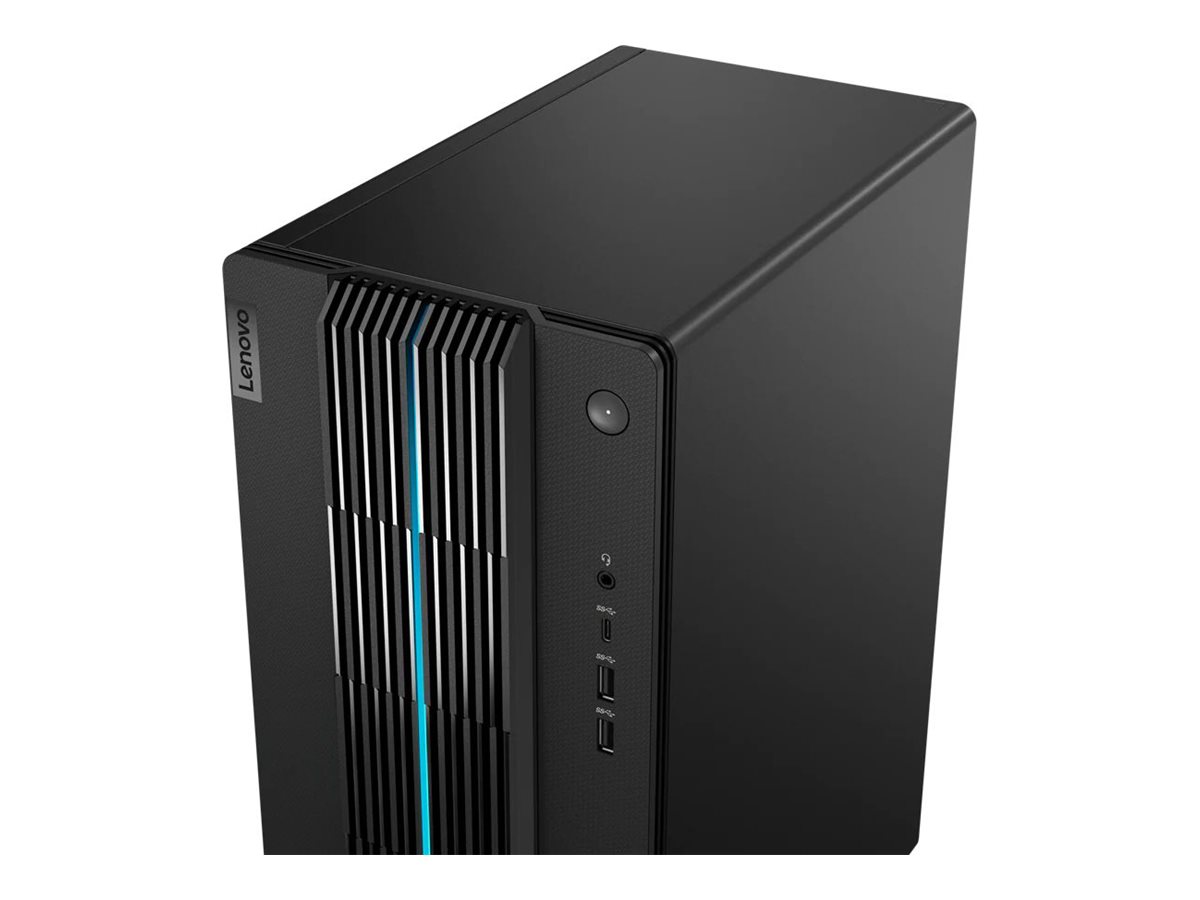

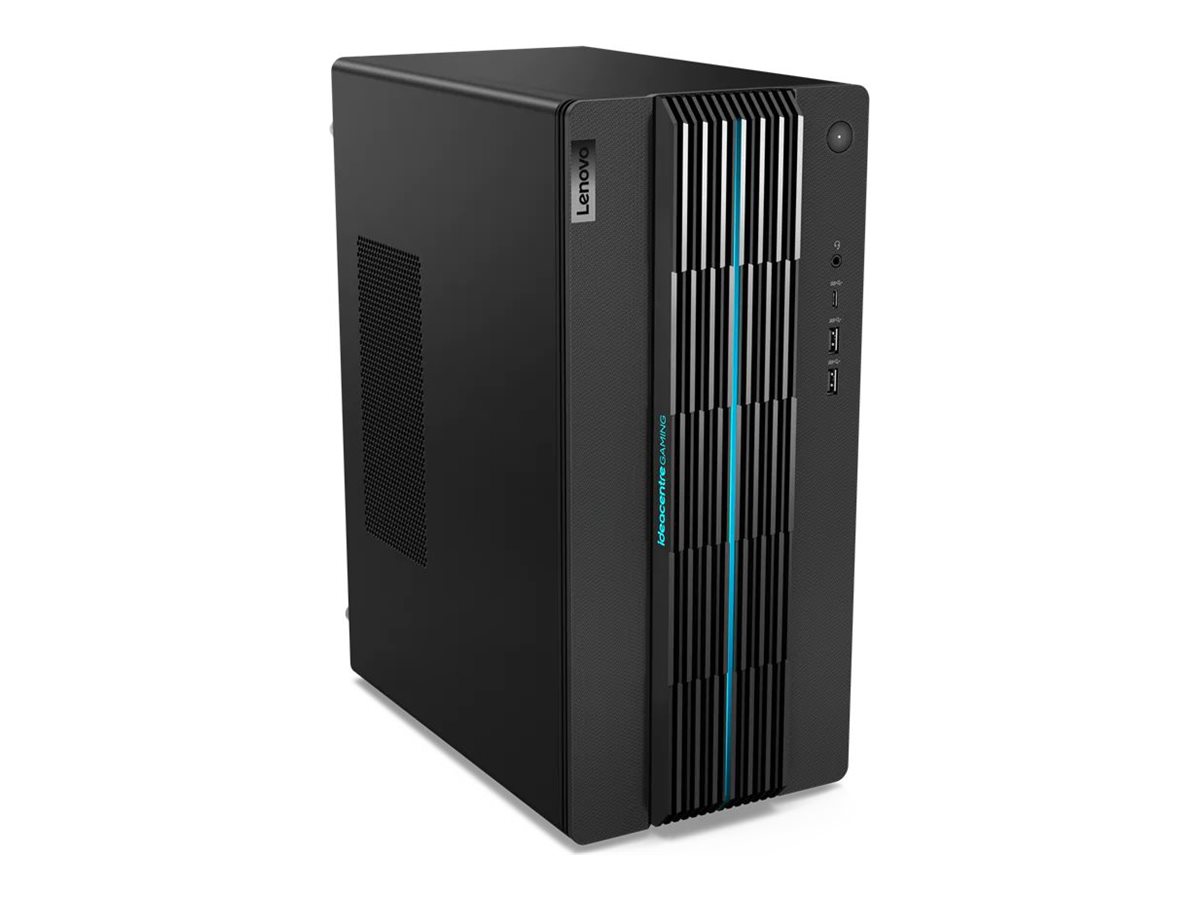

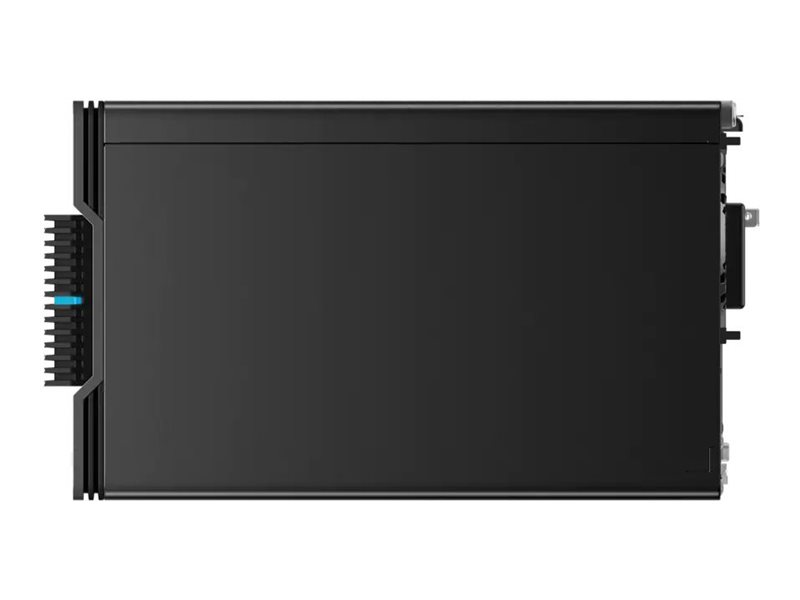

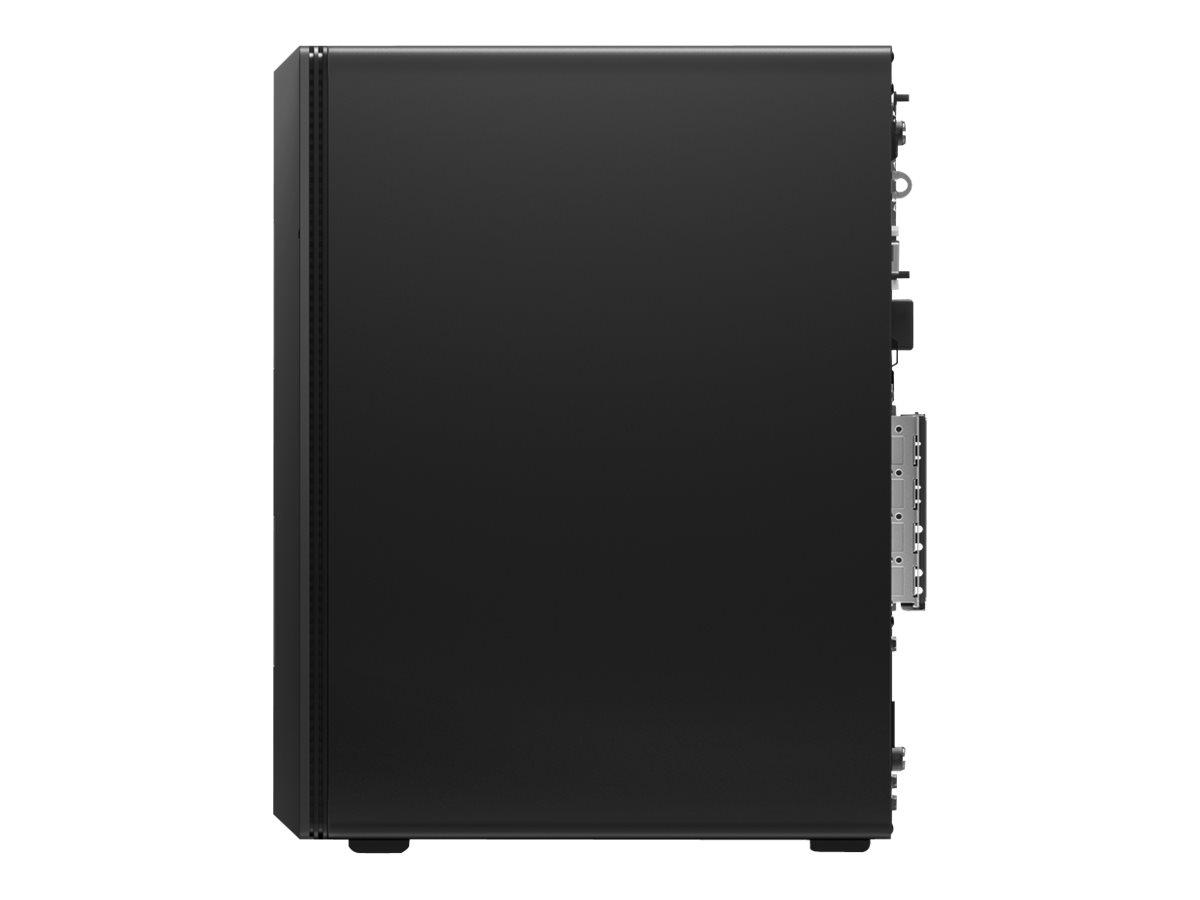

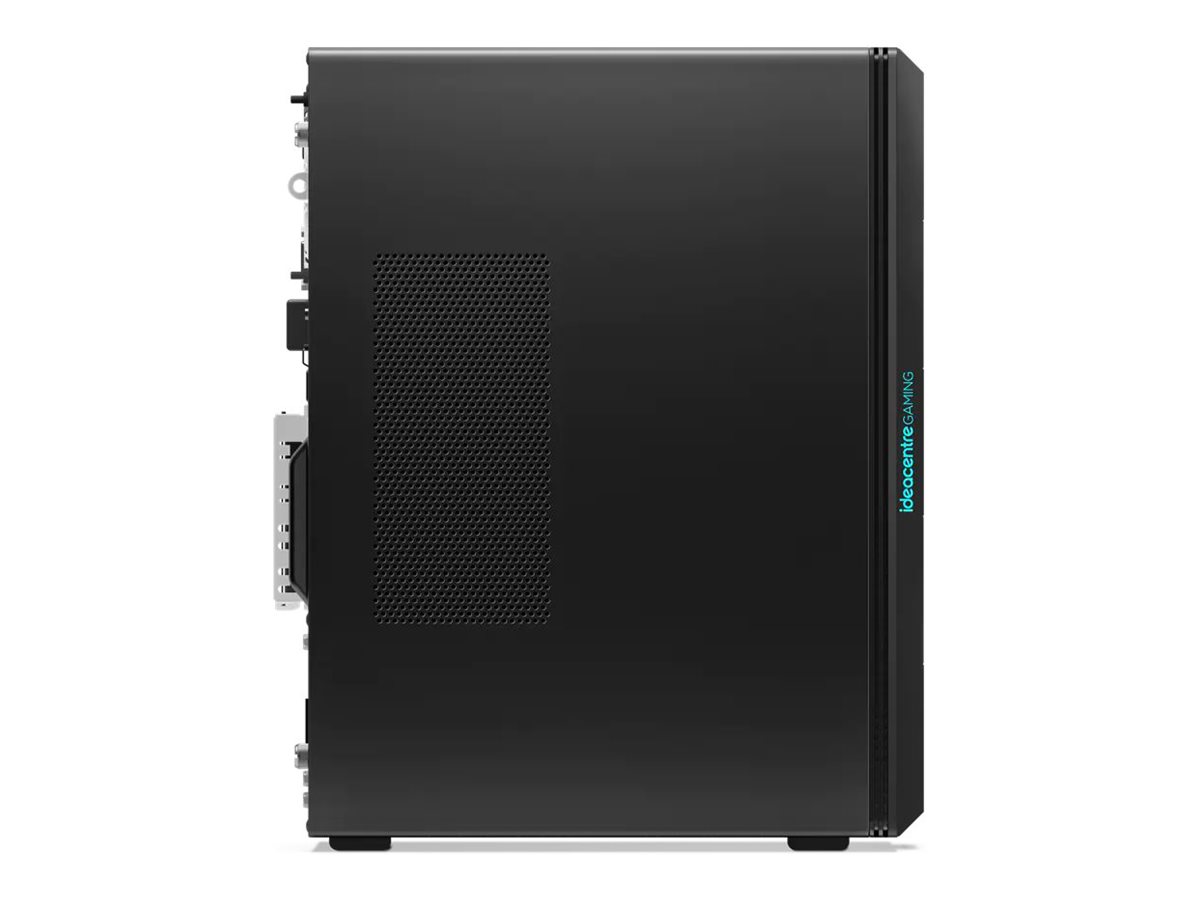

Lenovo - Lenovo IdeaCentre Gaming 5 17IAB7 90T0
Tower gaming - Core i5 12400 / up to 4.4 GHz - RAM 8 GB - SSD 512 GB - NVMe - NVIDIA GeForce RTX 3050 / Intel UHD Graphics 730 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) - Win 11 Home - monitor: none - keyboard: English - raven black
Lenovo
90T00005US
0196802569262
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Lenovo IdeaCentre Gaming 5 17IAB7 - tower Core i5 12400 2.5 GHz - 8 GB - SSD 512 GB - English |
| Type | Personal computer - tower |
| Localization | Language: English / region: United States |
| Processor | Intel Core i5 (12th Gen) 12400 / 2.5 GHz (up to 4.4 GHz, (6-core) |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA |
| Hard Drive | SSD 512 GB - PCI Express 3.0 x4 - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Controller | NVIDIA GeForce RTX 3050 / Intel UHD Graphics 730 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Gaming | Yes |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.1, Wi-Fi 6 |
| Keyboard | English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Home |
| Color | Raven black |
| Dimensions (WxDxH) | 6.7 in x 12 in x 14.8 in |
| Weight | 18.52 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 1 year - carry-in |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Built-in Devices | Front system fan, rear system fan |
| Gaming | Yes |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Raven black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 4.0 x16 - full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x1 - full-height ¦ 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 1 (total) / 0 (free) x M.2 Card (for SSD) |

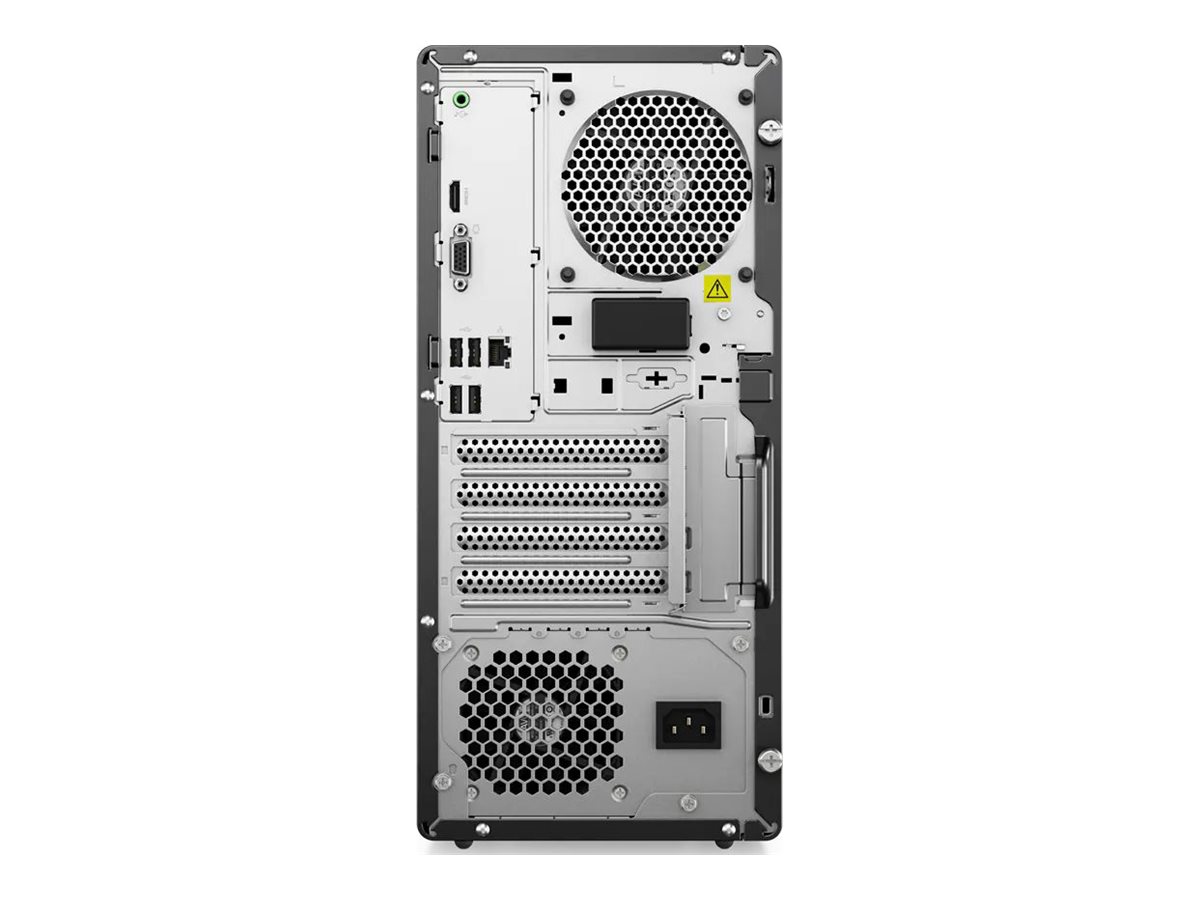

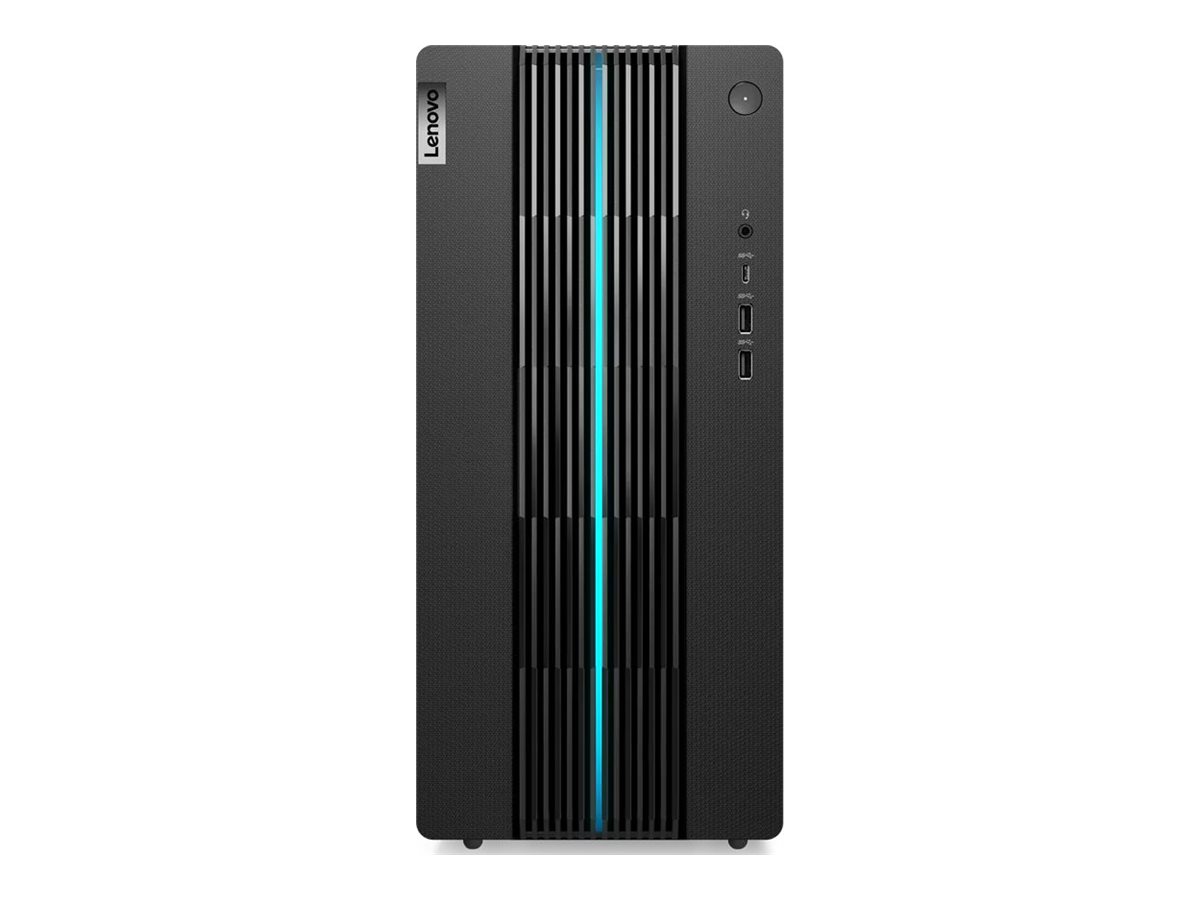

| Interfaces | 1 x USB 3.2 Gen 1 (1 in front) ¦ 1 x USB 3.2 Gen 2 (1 in front) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 5V 3A charging) ¦ 1 x headphones/microphone (1 in front) ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 2 x HDMI ¦ 3 x DisplayPort ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - carry-in |
| Miscellaneous | |
| Gaming | Yes |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3 |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 1600 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6) |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| Efficiency | 92% |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 3050 / Intel UHD Graphics 730 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Home English |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 12 in |
| Height | 14.8 in |
| Weight | 18.52 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 15.6 in |
| Shipping Height | 20.9 in |
| Shipping Weight | 25.35 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) 12400 |
| Clock Speed | 2.5 GHz |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel B660 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
