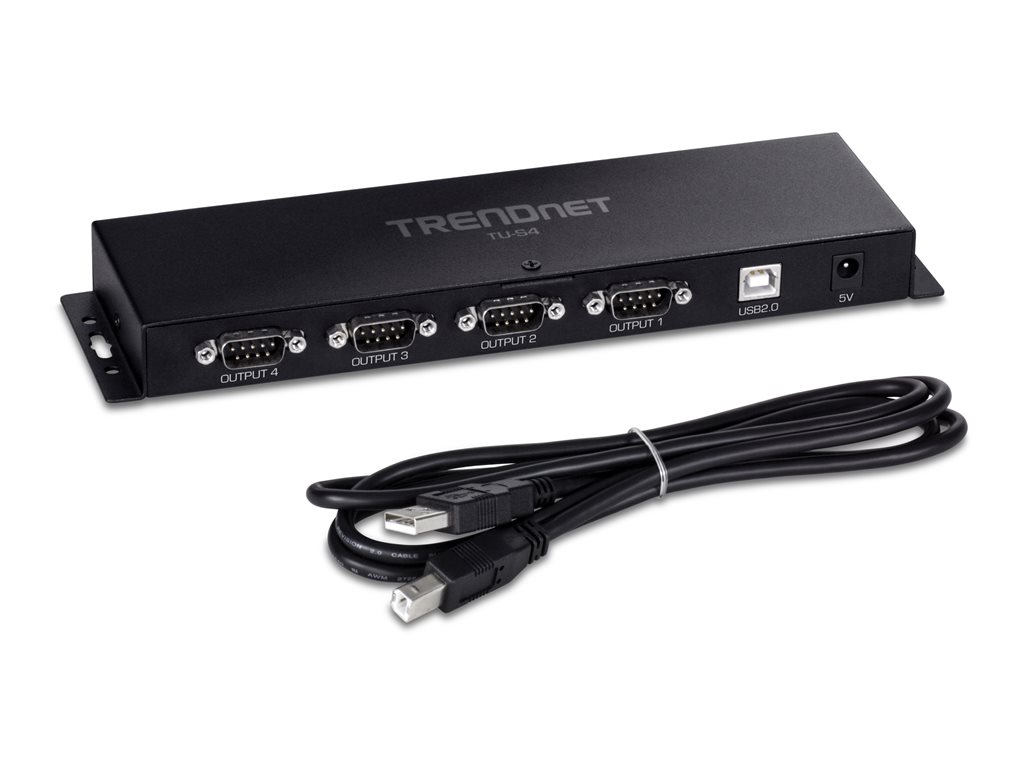

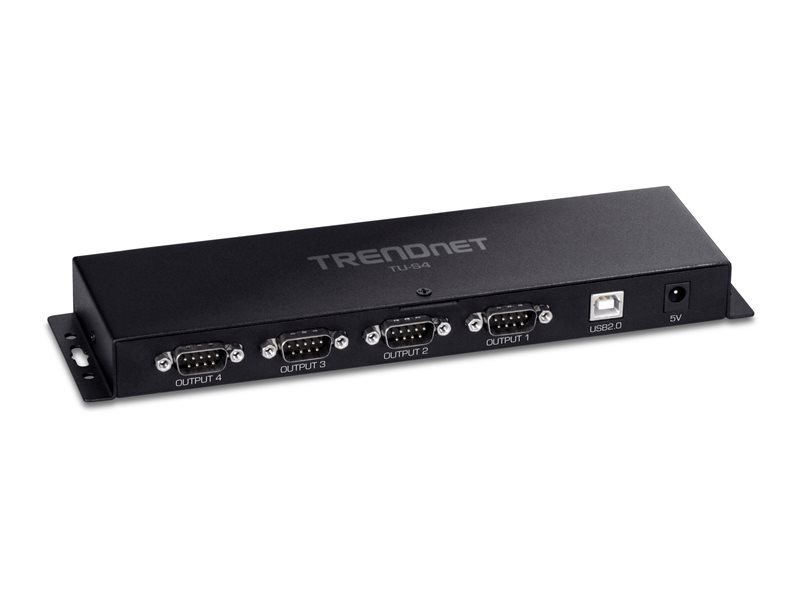

Serial adapter - USB - RS-232 x 4
| Main Specifications | |
|---|---|
| Product Description | TRENDnet - serial adapter - USB - RS-232 x 4 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Ports | RS-232 x 4 |
| Dimensions (WxDxH) | 9.4 in x 2.5 in x 0.9 in |
| Weight | 14.57 oz |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 460 Kbps |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 8.1 / 10, Apple macOS 11, Apple macOS 10.15 - 10.6 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) - male |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable (external) - 3.3 ft |
| Compliant Standards | FCC, NDAA |
| Networking | |
| Ports | RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 460 Kbps |
| Software / System Requirements | |
| Software Included | Drivers |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 8.1 / 10, Apple macOS 11, Apple macOS 10.15 - 10.6 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 2.5 in |
| Height | 0.9 in |
| Weight | 14.57 oz |
