Docking station - USB-C - 2 x HDMI, DP - GigE
| Main Specifications | |
|---|---|
| Product Description | SIIG USB-C Triple Video MST Docking Station with PD - docking station - USB-C - 2 x HDMI, DP - GigE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI, DP |
| Dimensions (WxDxH) | 3.4 in x 8.3 in x 0.8 in |
| Weight | 11.36 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50 - 60 Hz) Power Provided |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.4 in |
| Depth | 8.3 in |
| Height | 0.8 in |
| Weight | 11.36 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |

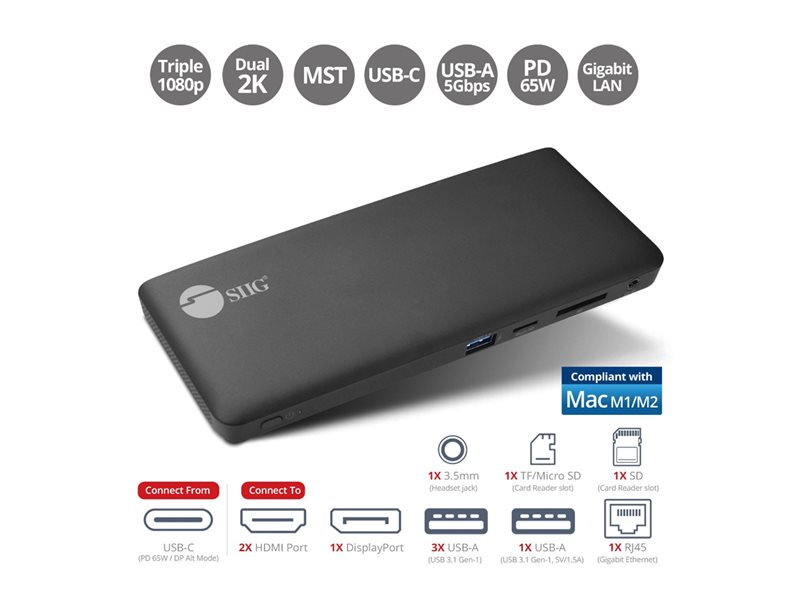

| Interfaces | 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x USB 3.2 Gen 1 with Fast Charging - 9 pin USB Type A ¦ 3 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - input / output - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Technical support - lifetime |
| Miscellaneous | |

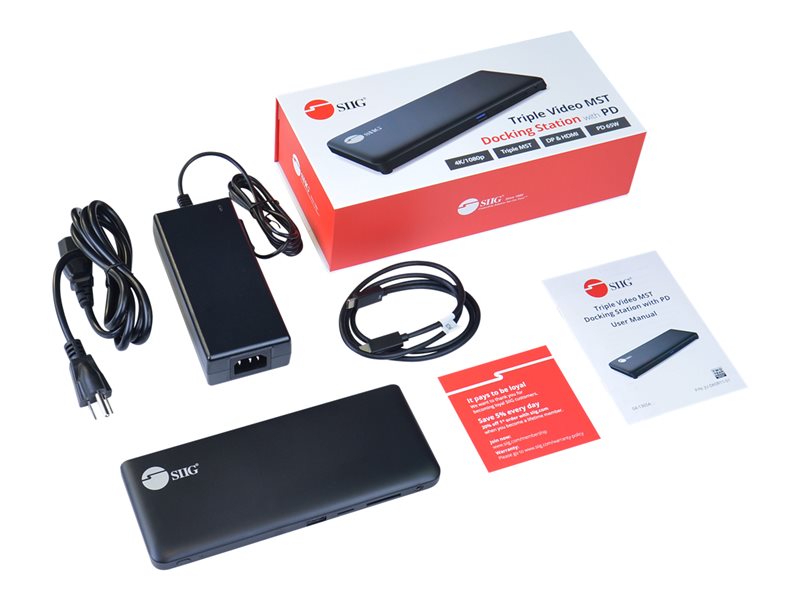

| Cables Included | 1 x USB-C 3.2 Gen 1 cable - external |
| Features | Security lock slot (cable lock sold separately), on/off switch, MST (multi-stream transport), DisplayPort Alt Mode, 65W power delivery, RTL8153 chipset, Mirror Mode, Extended Mode, ABS housing, VMM5310 chipset, Primary Mode |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, FCC, REACH, USB Power Delivery 3.0, RoHS 2.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 1920 x 1080 - 60 Hz (Triple Display) ¦ 2560 x 1440 - 60 Hz (Dual Display (DisplayPort + HDMI / 2 x HDMI)) ¦ 3840 x 2160 - 60 Hz (Single Display) |
| System Requirements | |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12, Windows 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 10.5 in |
| Shipping Height | 2.9 in |
| Shipping Weight | 2.69 lbs |
