Docking station - USB-C / Thunderbolt 3 - 4 x DP, 4 x HDMI - GigE
| Main Specifications | |
|---|---|
| Product Description | SIIG USB-C Quad Hybrid 4K Video Docking Station with PD - docking station - USB-C / Thunderbolt 3 - 4 x DP, 4 x HDMI - GigE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 |
| Video Interfaces | 4 x DP, 4 x HDMI |
| Dimensions (WxDxH) | 3.9 in x 9.6 in x 1.5 in |
| Weight | 21.13 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50/60 Hz) Power Provided |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3.9 in |
| Depth | 9.6 in |
| Height | 1.5 in |
| Weight | 21.13 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x microSD ¦ 1 (total) / 1 (free) x SD Memory Card |

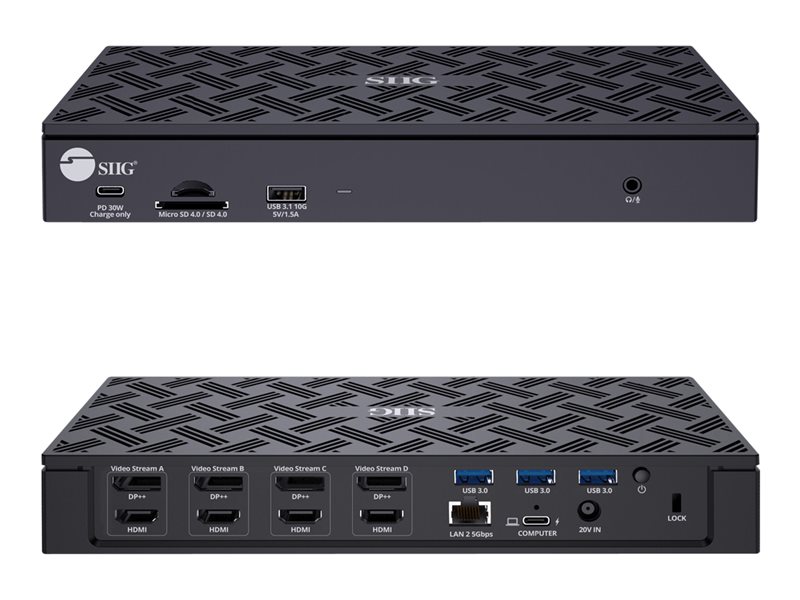

| Interfaces | 1 x USB-C / Thunderbolt 3 with Power Delivery (100 W) - 24 pin USB-C ¦ 4 x audio / video - HDMI - 19 pin HDMI Type A ¦ 4 x display / video - DisplayPort - 20 pin DisplayPort ¦ 3 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-C with Power Delivery (30 W) - 24 pin USB-C (power only) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), LED indicator, 100W power delivery, hybrid (flat) style, DisplayLink DL-6910 chipset, ABS housing |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, FCC, REACH, USB Power Delivery 3.0, RoHS 2.0 |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 89.6 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (Quad Display (4x HDMI or 4x DisplayPort)) ¦ 5120 x 2880 - 60 Hz (Single Display (2 x DisplayPort)) |
| System Requirements | |
| OS Required | Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12, Windows 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 11 in |
| Shipping Height | 4.4 in |
| Shipping Weight | 3.86 lbs |
