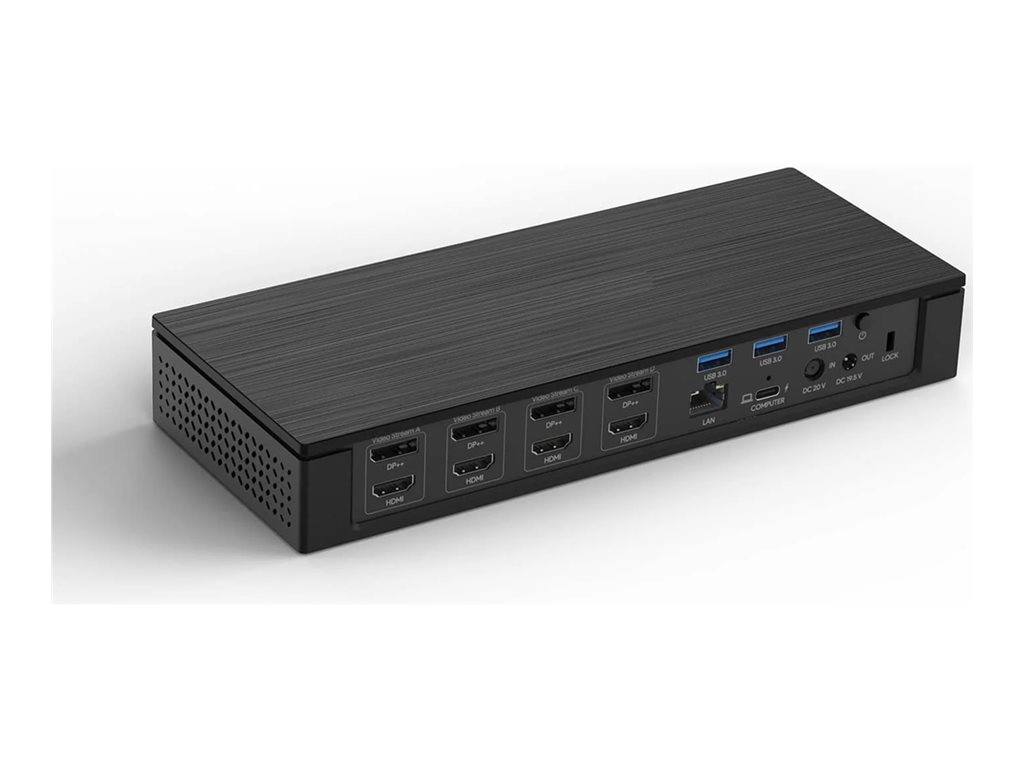

Docking station - USB-C 3.1 Gen 2 - 4 x DP, 4 x HDMI - GigE - 178 Watt
| Main Specifications | |
|---|---|
| Product Description | 4XEM - docking station - USB-C 3.1 Gen 2 - 4 x DP, 4 x HDMI - GigE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.1 Gen 2 |
| Video Interfaces | 4 x DP, 4 x HDMI |
| Dimensions (WxDxH) | 9.7 in x 3.9 in x 1.5 in |
| Weight | 20.6 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (50/60 Hz) 178 Watt Power Provided |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 9.7 in |
| Depth | 3.9 in |
| Height | 1.5 in |
| Weight | 20.6 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 4 x audio / video - DisplayPort output - 20 pin DisplayPort ¦ 4 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x USB-C with Power Delivery (30 W) - 24 pin USB-C ¦ 1 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 2.5GBase-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm 4-pole |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C 3.1 Gen 2 cable - external - 3 ft |
| Included Accessories | 9 power tips |
| Features | Security lock slot (cable lock sold separately), aluminum enclosure, LED indicator, 100W power delivery, up to 4 monitors support, Mirror Mode, Extended Mode, plastic housing, built-in heat sink |
| Security Slot Type | Kensington security slot |
| Compliant Standards | USB Battery Charging Specification Rev. 1.2, DisplayPort 1.2, HDCP |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 178 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 5120 x 2880 - 60 Hz (Dual Display (DisplayPort 1.2)) ¦ 3840 x 2160 - 60 Hz (Single Display) ¦ 3840 x 2160 - 60 Hz (HDMI only) |
| System Requirements | |
| OS Required | Microsoft Windows 7 or later, Apple MacOS X 10.8 or later |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.1 in |
| Shipping Depth | 4.4 in |
| Shipping Height | 5.2 in |
| Shipping Weight | 3.97 lbs |
