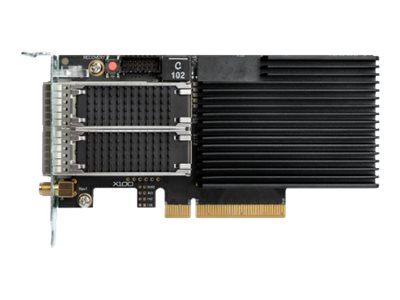

Cisco - Cisco Nexus X100 SmartNIC (K3P-Q)
Network adapter - PCIe 3.0 x8 low profile - QSFP28/QSFP+ x 2 - for UCS C240 M5, C240 M5L, SmartPlay Select C240 M5, SmartPlay Select C240 M5CL
Cisco
NXN-K3P-8X-9GB
0889728321204
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Nexus X100 SmartNIC (K3P-Q) - network adapter - PCIe 3.0 x8 - QSFP28/QSFP+ x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | QSFP28/QSFP+ x 2 |
| Dimensions (WxDxH) | 4.6 in x 2.7 in |
| Cabling Type | Ethernet 100GBase-LR4, Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4, Ethernet 100GBase-SR4 |
| Data Link Protocol | 100Mb LAN, 1GbE, 10GbE, 25GbE |
| Performance | Latency (64-byte packets) raw frames: 714 ns ¦ Latency (256-byte packets) raw frames with preloaded TX buffer: 927 ns ¦ Latency (64-byte packets) raw frames with preloaded TX buffer: 653 ns ¦ Latency (256-byte packets) raw frames with preloaded TX buffer: 690 ns ¦ Latency (14-byte packets) UDP: 828 ns ¦ Latency (256-byte packets) UDP: 1.11 µs ¦ Latency (14-byte packets) TCP: 869 ns ¦ Latency (256-byte packets) TCP: 1.13 µs ¦ Timestamp resolution: 4 ns |
| Capacity | IP rules per port: 64 ¦ MAC rules per port: 64 |
| RAM | 9 GB |
| Designed For | UCS C220 M5, C220 M5L, C220 M5SN, C220 M5SX, C240 M5, C240 M5L, C240 M5SX, SmartPlay Select C220 M5, SmartPlay Select C220 M5S, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5, SmartPlay Select C240 M5CL, SmartPlay Select C240 M5L, SmartPlay Select C240 M5SX |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet/40Gb Ethernet - QSFP28/QSFP+ |
| Networking | |
| Ports | QSFP28/QSFP+ x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100GBase-LR4, Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4, Ethernet 100GBase-SR4 |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Latency (64-byte packets) raw frames: 714 ns ¦ Latency (256-byte packets) raw frames with preloaded TX buffer: 927 ns ¦ Latency (64-byte packets) raw frames with preloaded TX buffer: 653 ns ¦ Latency (256-byte packets) raw frames with preloaded TX buffer: 690 ns ¦ Latency (14-byte packets) UDP: 828 ns ¦ Latency (256-byte packets) UDP: 1.11 µs ¦ Latency (14-byte packets) TCP: 869 ns ¦ Latency (256-byte packets) TCP: 1.13 µs ¦ Timestamp resolution: 4 ns |
| Capacity | IP rules per port: 64 ¦ MAC rules per port: 64 |
| Features | PTP, Field Programmable Gate Array |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory | |
| RAM | 9 GB |
| Dimensions & Weight | |
| Depth | 4.6 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | Cisco UCS C220 M5 LFF, C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5L, C220 M5SN SFF, C240 M5 Advanced, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server, C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5 Short Depth Rack Server, C240 M5L, C240 M5L Rack Server for Microsoft Azure Stack, C240 M5SX, SmartPlay Select C220 M5, SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5CL, SmartPlay Select C240 M5L, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6 |
