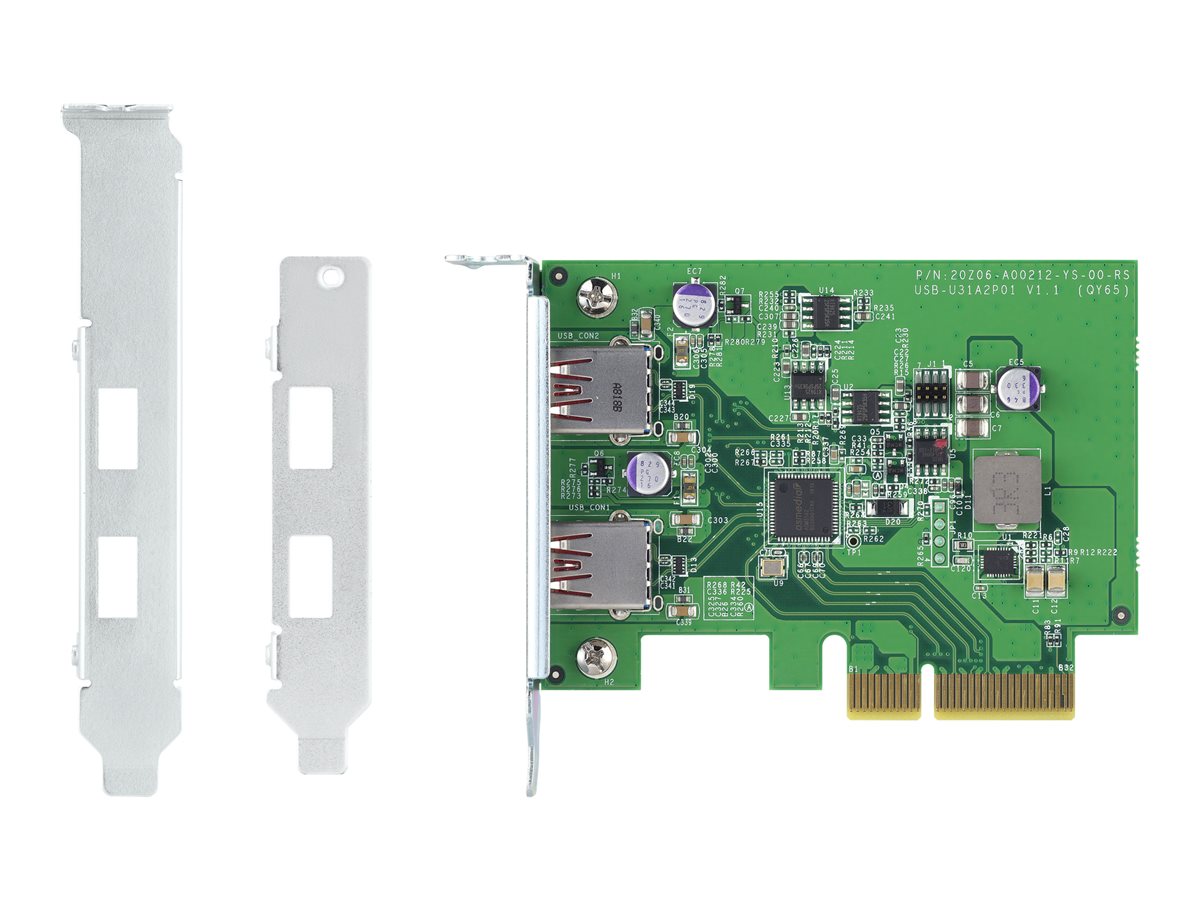

USB adapter - PCIe 2.0 x2 low profile - USB 3.2 Gen 2 x 2 - for QNAP QGD-1600, TS-1232, 1277, 253, 453, 473, 853, 877, 977, TVS-2472, 473, 673, 872, 873
| Main Specifications | |
|---|---|
| Product Description | QNAP QXP-10G2U3A - USB adapter - PCIe 2.0 x2 - USB 3.2 Gen 2 x 2 |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Ports | USB 3.2 Gen 2 x 2 |
| Dimensions (WxDxH) | 0.6 in x 3.5 in x 2.7 in |
| Data Link Protocol | USB 3.2 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Processor | 1 x ASMedia ASM3142 |
| Compliant Standards | USB 3.2 Gen 2 |
| System Requirements | Windows 8 / 8.1 / 10 (32/64 bits), QNAP QTS 4.3.6 or later, Ubuntu 20.04 LTS |
| Designed For | QNAP QGD-1600, SS-EC1279, EC1879, EC2479, TS-1232, 1253, 1263, 1273, 1277, 253, 453, 463, 470, 473, 563, 653, 670, 677, 853, 863, 870, 873, 877, 977, EC1080, EC1279, EC1280, EC1679, EC880, TVS-2472, 463, 471, 473, 663, 671, 673, 682, 863, 871, 872, 873, 882, EC1080, EC1280, EC1580, EC2480, EC880 |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.2 Gen 2 - 9 pin USB Type A |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Networking | |
| Ports | USB 3.2 Gen 2 x 2 |
| Data Link Protocol | USB 3.2 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Features | Over-current protection, short circuit protection |
| Compliant Standards | USB 3.2 Gen 2 |
| Software / System Requirements | |
| OS Required | Windows 8 / 8.1 / 10 (32/64 bits), QNAP QTS 4.3.6 or later, Ubuntu 20.04 LTS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x ASMedia ASM3142 |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 3.5 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | QNAP QGD-1600, SS-EC1279U-SAS-RP, SS-EC1879U-SAS-RP, SS-EC2479U-SAS-RP, TS-1079 Pro, TS-1232XU, TS-1232XU-RP, TS-1253BU-RP, TS-1263U-RP, TS-1270U-RP Turbo NAS, TS-1273U-RP, TS-1277, TS-1279U-RP Turbo NAS, TS-1679U-RP Turbo NAS, TS-253B, TS-253Be, TS-453Be, TS-453BT3, TS-463U, TS-463U-RP, TS-470 Pro Turbo NAS, TS-470 Turbo NAS, TS-473, TS-563 Turbo NAS, TS-653B, TS-670 Turbo NAS, TS-677, TS-853BU, TS-853DU-RP, TS-863U, TS-863U-RP, TS-870 Turbo NAS, TS-870U-RP Turbo NAS, TS-873U, TS-877, TS-877XU-RP, TS-879Pro, TS-879U-RP Turbo NAS, TS-977XU-RP, TS-EC1080 Pro Turbo NAS, TS-EC1279U-RP Turbo NAS, TS-EC1279U-SAS-RP Turbo NAS, TS-EC1280U, TS-EC1280U-RP Turbo NAS, TS-EC1679U-RP, TS-EC1679U-SAS-RP, TS-EC879U-RP Turbo NAS, TS-EC880 Pro Turbo NAS, TVS-2472XU-RP, TVS-463 Turbo NAS, TVS-471, TVS-473e, TVS-663 Turbo NAS, TVS-671, TVS-673e, TVS-682T, TVS-863 Turbo NAS, TVS-863+ Turbo NAS, TVS-871, TVS-871U-RP, TVS-872XU, TVS-873e, TVS-882BRT3, TVS-882ST2, TVS-EC1080+ Turbo NAS, TVS-EC1280U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC2480U-SAS-RP, TVS-EC880 Turbo NAS |
