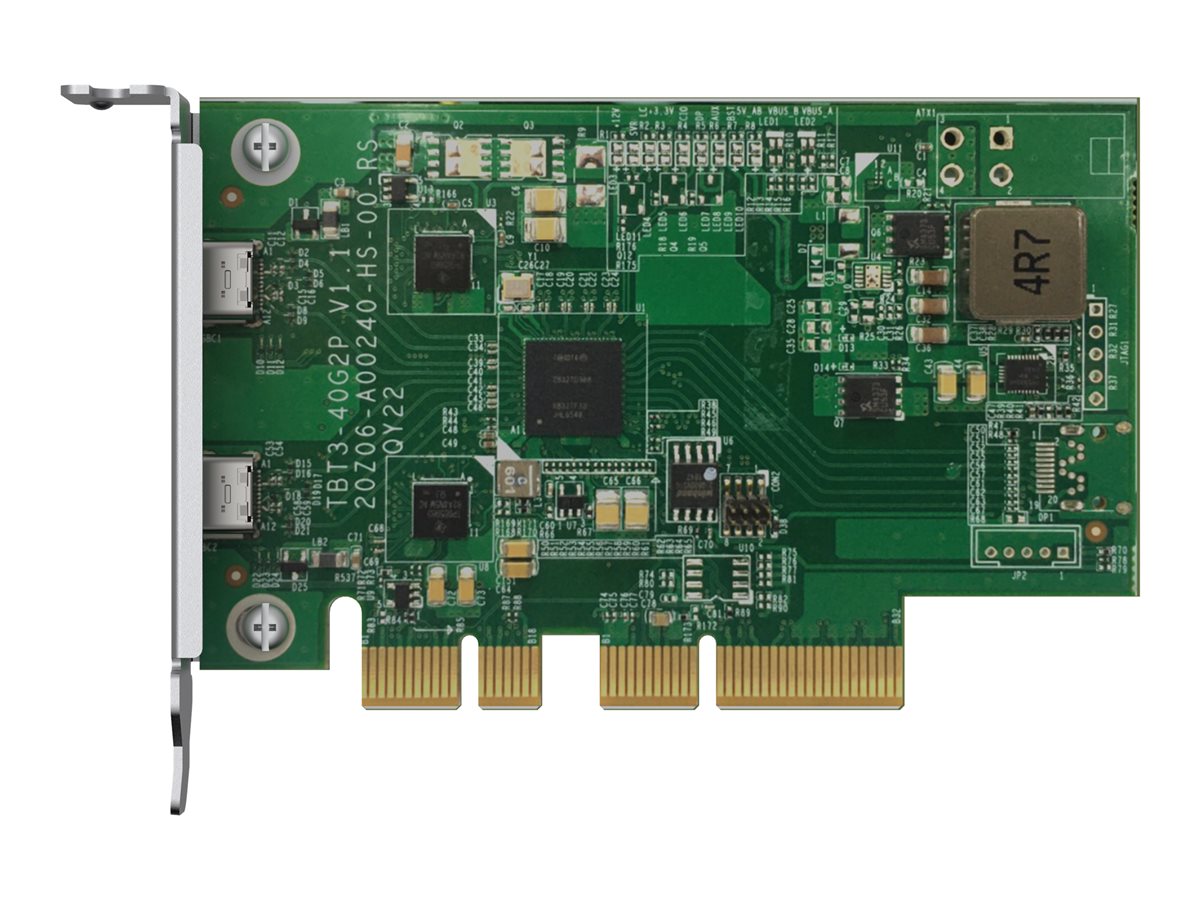

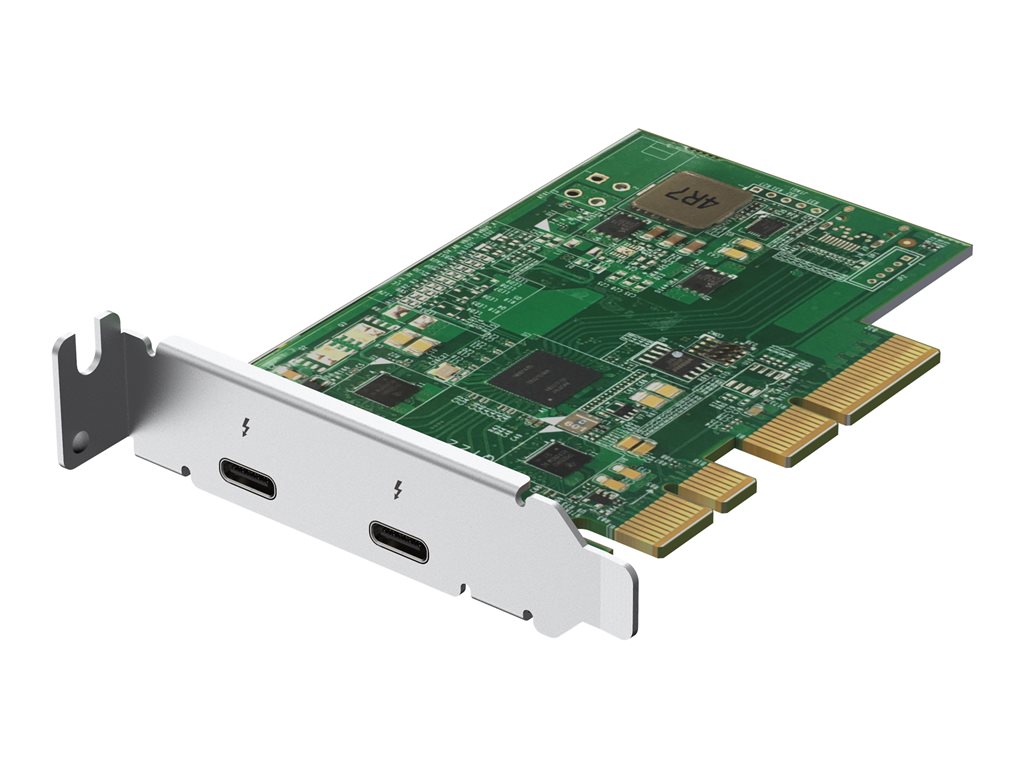

Thunderbolt adapter - PCIe 3.0 x4 low profile - Thunderbolt 3 x 2 - for QNAP TVS-H1288X, TVS-H1688X
| Main Specifications | |
|---|---|
| Product Description | QNAP QXP-T32P - Thunderbolt adapter - PCIe 3.0 x4 - Thunderbolt 3 x 2 |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | Thunderbolt 3 x 2 |
| Data Link Protocol | Thunderbolt 3 |
| Data Transfer Rate | 40 Gbps |
| System Requirements | QNAP QTS 4.4.0 or later, QNAP QuTS hero 4.5.0 or later |
| Designed For | QNAP TVS-h1288X, TVS-H1688X |
| General | |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x Thunderbolt 3 - 24 pin USB-C |
| Miscellaneous | |

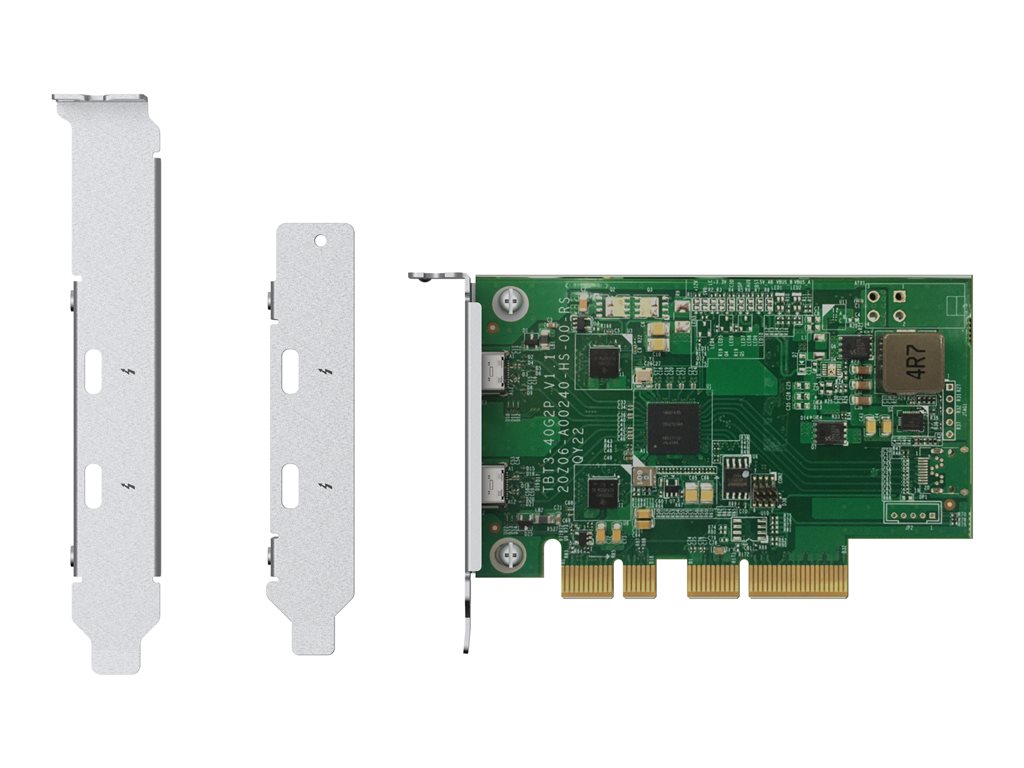

| Included Accessories | Full-height bracket |
| Networking | |
| Ports | Thunderbolt 3 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Thunderbolt 3 |
| Data Transfer Rate | 40 Gbps |
| Features | 4K resolution support |
| Software / System Requirements | |
| OS Required | QNAP QTS 4.4.0 or later, QNAP QuTS hero 4.5.0 or later |
| Compatibility Information | |
| Designed For | QNAP TVS-h1288X, TVS-H1688X |
