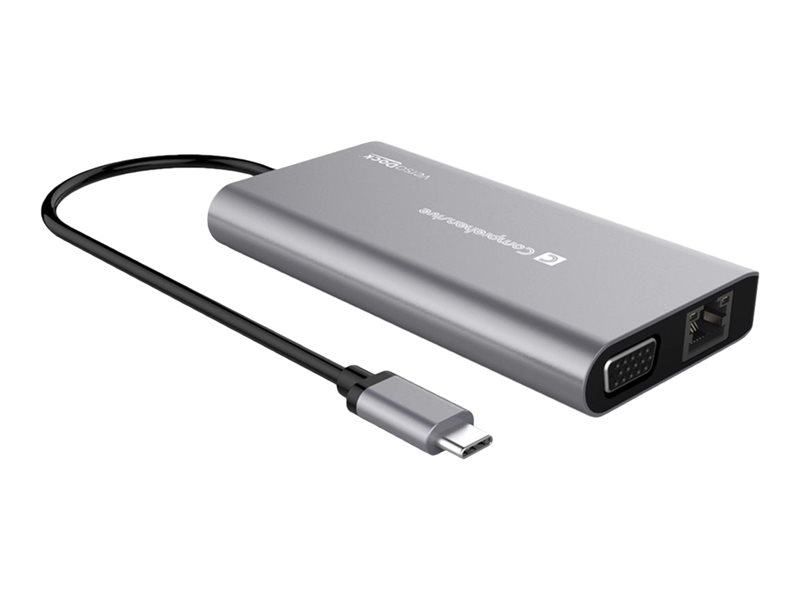

Docking station - USB-C - VGA, HDMI - GigE
| Main Specifications | |
|---|---|
| Product Description | Comprehensive VersaDock VDK-1140 - docking station - USB-C - VGA, HDMI - GigE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | VGA, HDMI |
| Dimensions (WxDxH) | 10.6 in x 2.2 in x 0.4 in |
| Color | Dark gray |
| Networking | Gigabit Ethernet |
| Power | Power Provided |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 10.6 in |
| Depth | 2.2 in |
| Height | 0.4 in |
| Enclosure Color | Dark gray |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C with Power Delivery (100 W) - SuperSpeed USB 3.0 - 24 pin USB-C ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 6 in |
| Features | Aluminum enclosure, UASP transfer protocol, full duplex support, up to 2 monitors support, USB-C powered |
| Compliant Standards | UL, RoHS, USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 1920 x 1080 - 60 Hz (VGA only) ¦ 4K - 30 Hz (HDMI only) ¦ 1920 x 1080 - 60 Hz (HDMI and VGA simultaneously) |
| System Requirements | |
| OS Required | Apple MacOS X 10.6, Google Chrome OS, Apple MacOS X 10.7 or later, Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.9, Apple MacOS X 10.8 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 19.19 oz |
