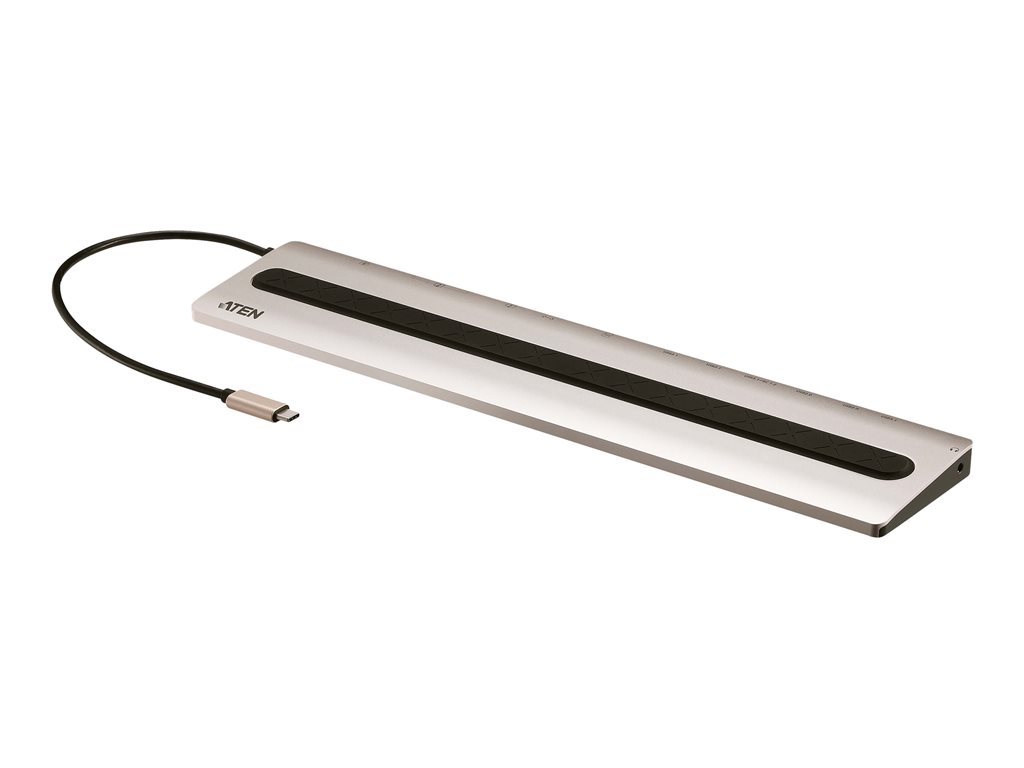

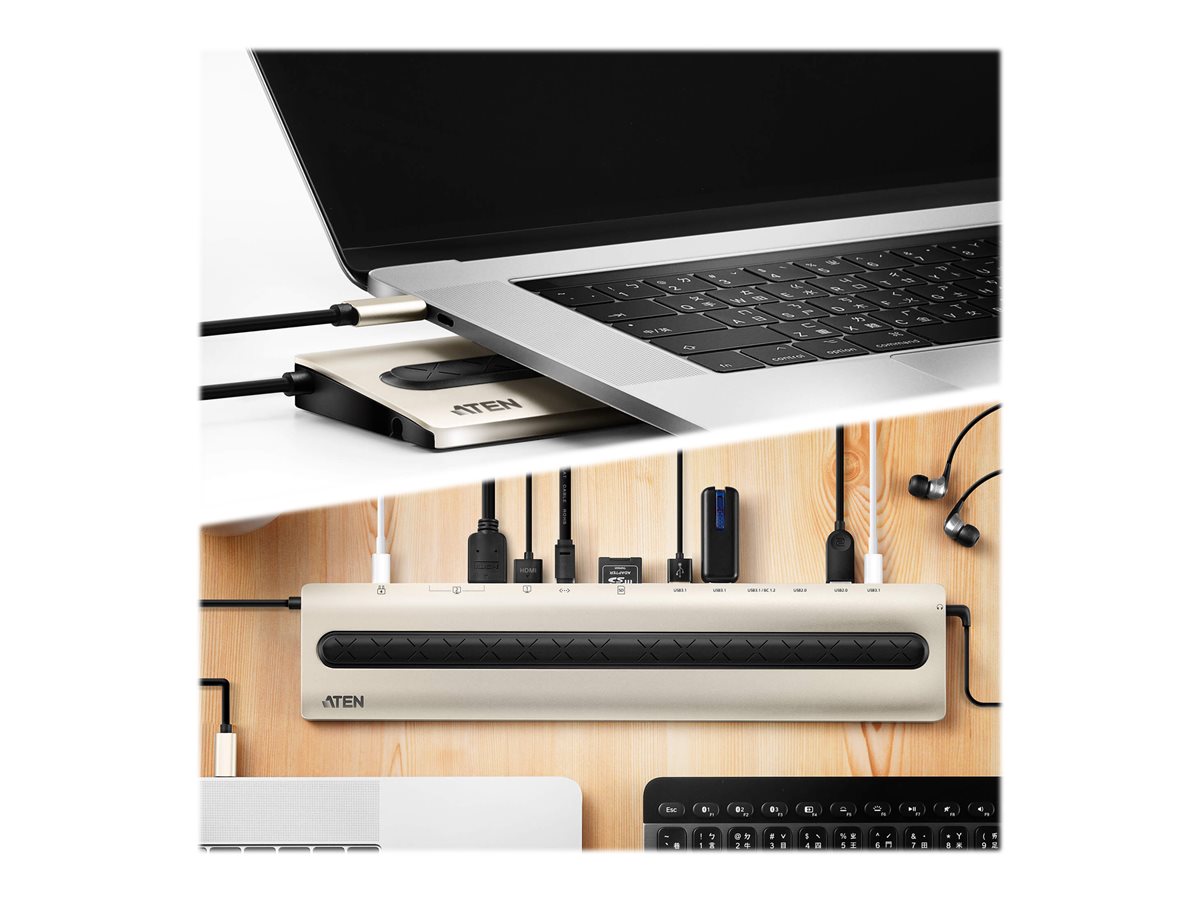

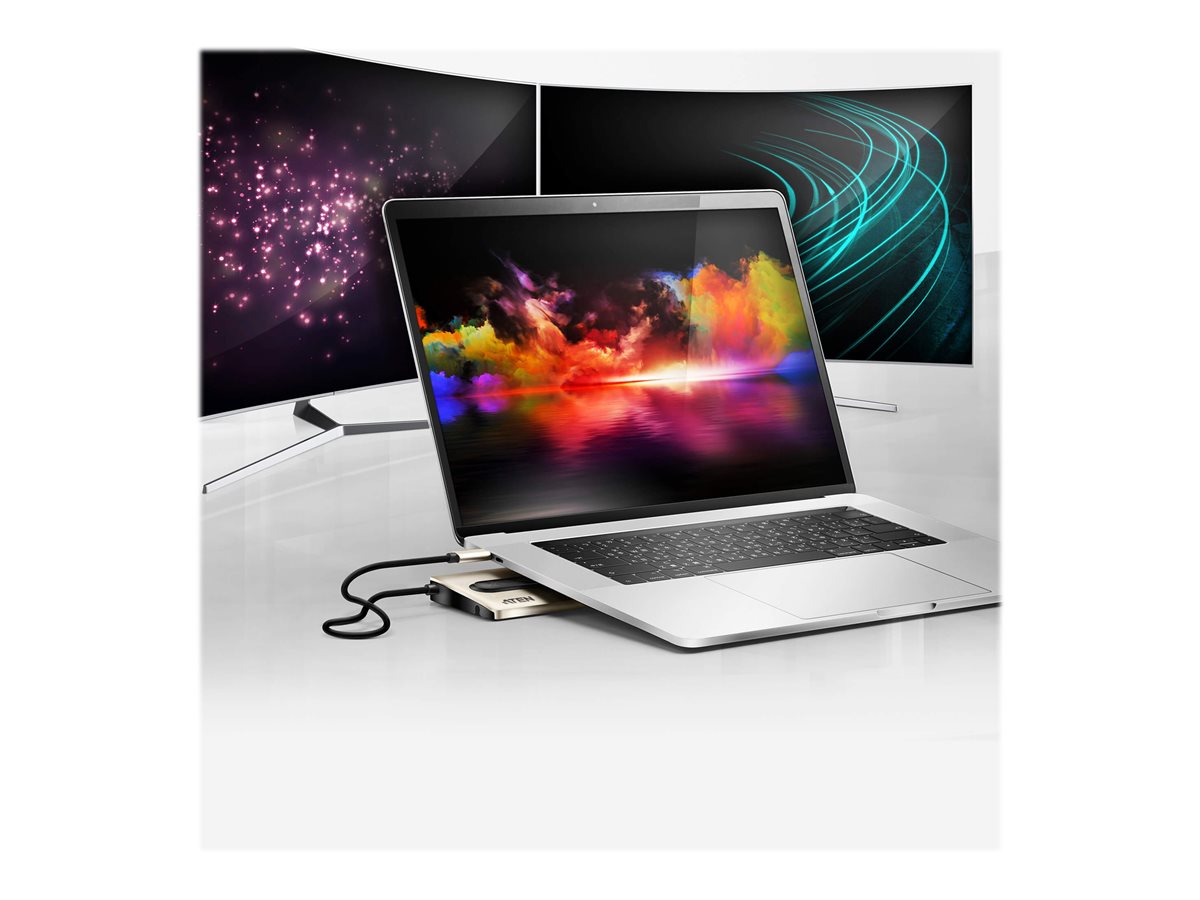

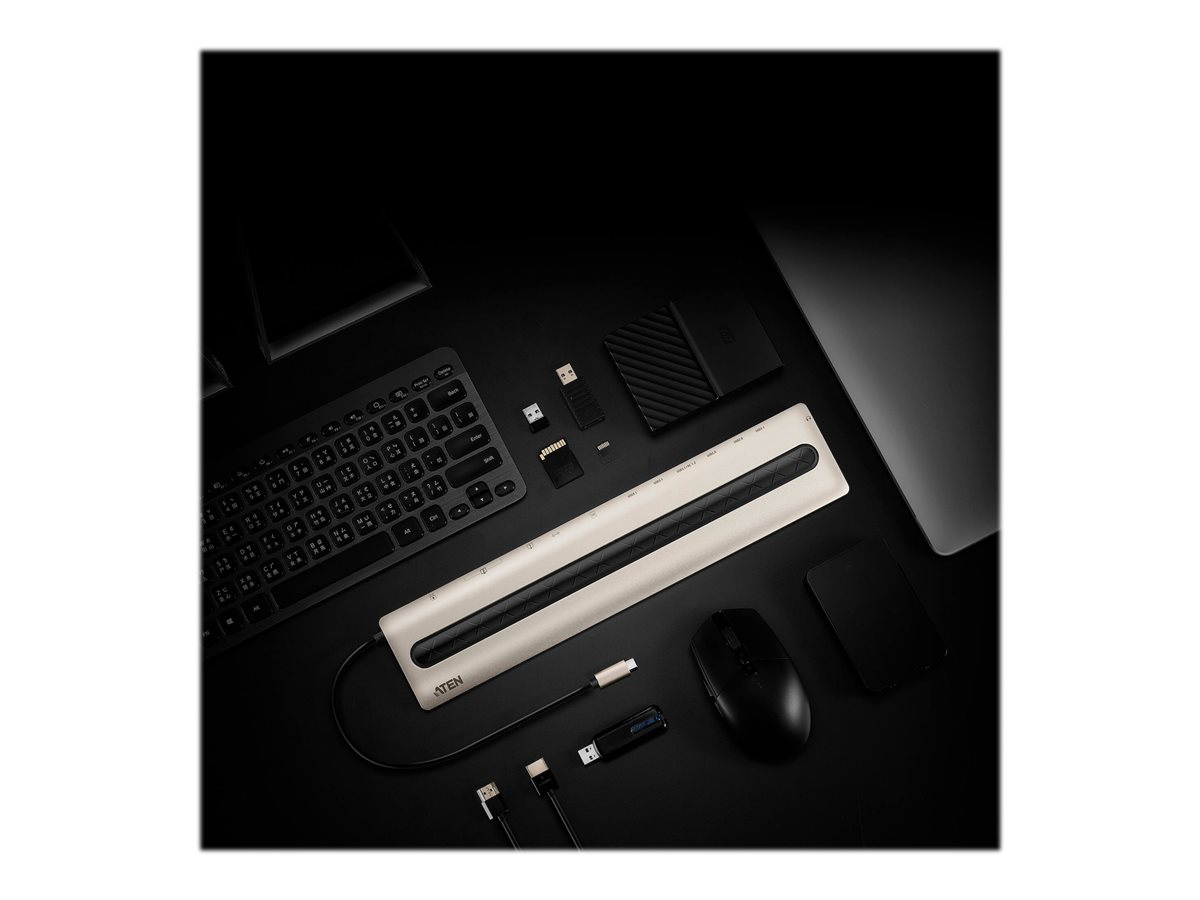

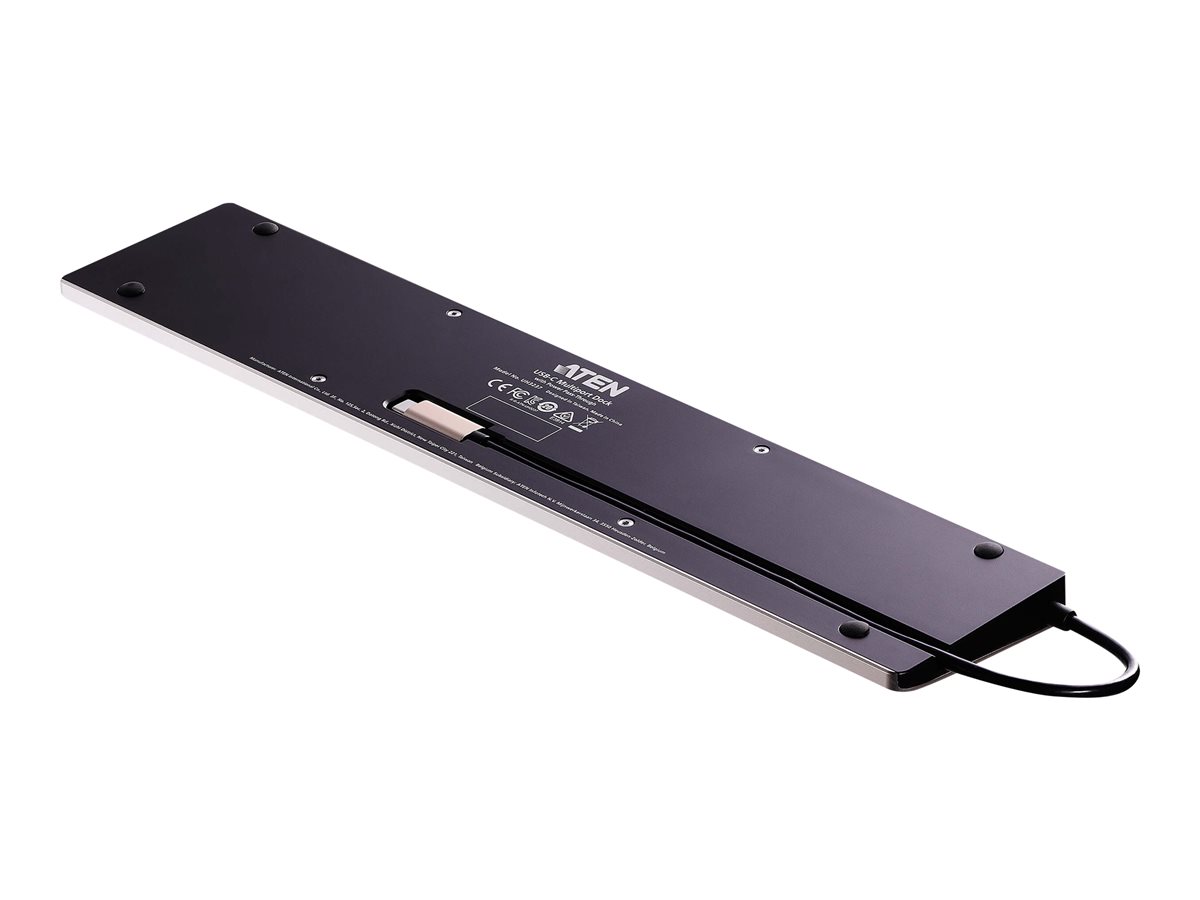

Docking station - USB-C 3.1 Gen 1 / Thunderbolt 3 - VGA, 2 x HDMI - GigE
| Main Specifications | |
|---|---|
| Product Description | ATEN UH3237 - docking station - USB-C 3.1 Gen 1 / Thunderbolt 3 - VGA, 2 x HDMI - GigE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.1 Gen 1 / Thunderbolt 3 |
| Video Interfaces | VGA, 2 x HDMI |
| Dimensions (WxDxH) | 3 in x 13.8 in x 0.6 in |
| Weight | 13.05 oz |
| Color | Black & gold |
| Audio Output | Headphone - stereo |
| Networking | Gigabit Ethernet |
| Power | Power Provided |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Docking station |
| Width | 3 in |
| Depth | 13.8 in |
| Height | 0.6 in |
| Weight | 13.05 oz |
| Enclosure Color | Black & gold |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |

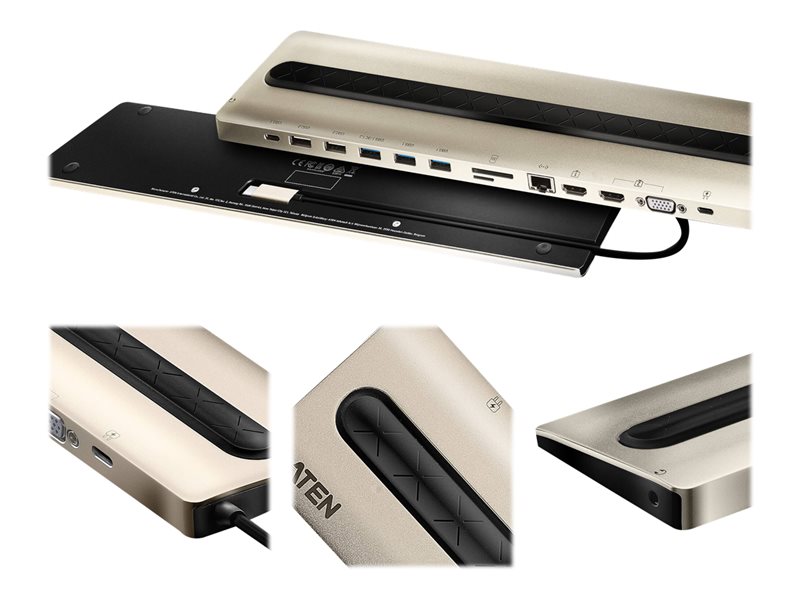

| Interfaces | 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x video - VGA - 15 pin HD D-Sub (HD-15) ¦ 3 x USB 3.1 Gen 1 - 9 pin USB Type A ¦ 1 x network - RJ-45 ¦ 1 x USB-C with Power Delivery (85 W) - 24 pin USB-C ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C 3.1 Gen 1 (data only) - 24 pin USB-C ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm 4-pole |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 1 ft |
| Features | 4K Ultra HD, DisplayPort Alt Mode, ultra-slim, USB port with passthrough, aluminum top cover, plastic bottom panel, for notebook from 13" to 15" |
| Compliant Standards | RoHS |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 30 Hz (HDMI1 only) ¦ 1920 x 1080 - 60 Hz (VGA only) ¦ 1920 x 1080 - 60 Hz (HDMI1 and HDMI2 simultaneously) |
| Audio | |
| Audio Output | Headphone |
| Sound Output Mode | Stereo |
| System Requirements | |
| OS Required | Apple macOS Sierra 10.12 or later, Windows 10 or later, Apple iOS 12.1 or later, Apple iPadOS 13 or later |
