TP-Link Archer T5E
- Back to Results
Main Specifications
|
---|
Product Description
|

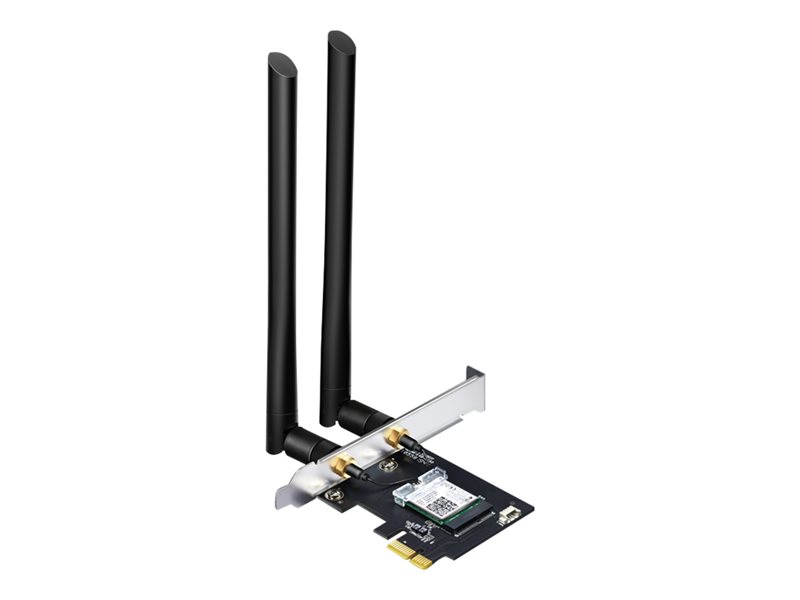

TP-Link Archer T5E - network adapter - PCIe
|
Device Type
|
Network adapter
|
Form Factor
|
Plug-in card
|
Interface (Bus) Type
|
PCI Express
|
Dimensions (WxDxH)
|
0.8 in x 4.8 in x 3.3 in
|
Data Link Protocol
|
Bluetooth 4.0, Wi-Fi 5, Bluetooth 4.2
|
Data Transfer Rate
|
1167 Mbps
|
Performance
|
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps
|
Frequency Band
|
2.4 GHz, 5 GHz
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac, Bluetooth 4.2
|
System Requirements
|
Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits)
|
General
|
---|
Device Type
|
Network adapter
|
Form Factor
|
Plug-in card
|
Interface (Bus) Type
|
PCI Express
|
Expansion / Connectivity
|
---|
Interfaces
|
2 x antenna
|
Miscellaneous
|
---|
Included Accessories
|
Low-profile bracket, full-height bracket
|
Encryption Algorithm
|
WPA, WPA2, WPA-PSK, WEP, WPA2-EAP
|
Compliant Standards
|
FCC, RoHS
|
Networking
|
---|
Connectivity Technology
|
Wireless
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac, Bluetooth 4.2
|
Data Transfer Rate
|
1167 Mbps
|
Performance
|
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps
|
Line Coding Format
|
DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, 16 QAM, OFDM
|
Frequency Band
|
2.4 GHz, 5 GHz
|
Features
|
2T2R MIMO technology
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac, Bluetooth 4.2
|
Software / System Requirements
|
---|
OS Required
|
Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits)
|
Environmental Parameters
|
---|
Min Operating Temperature
|
32 °F
|
Max Operating Temperature
|
104 °F
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
Dimensions & Weight
|
---|
Width
|
0.8 in
|
Depth
|
4.8 in
|
Height
|
3.3 in
|
Antenna
|
---|
Antenna
|
External detachable
|
Antenna Qty
|
2
|
