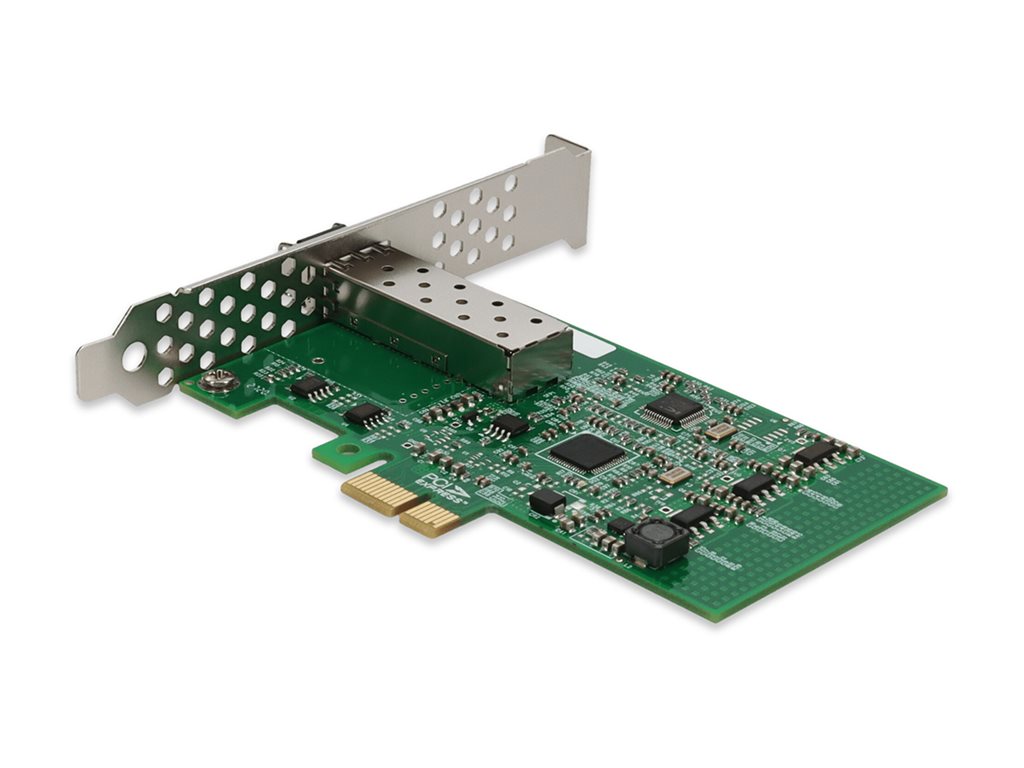

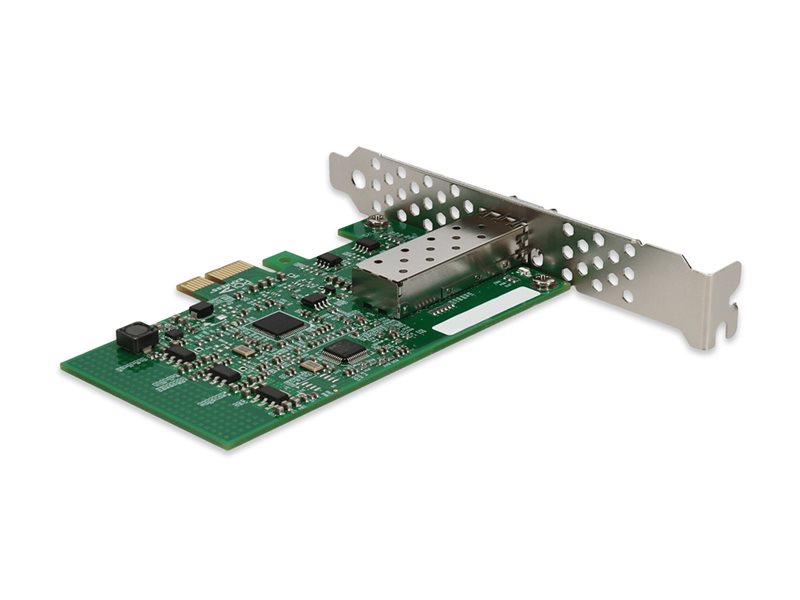

Network adapter - PCIe 2.0 - 100Base-FX - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | AddOn - network adapter - PCIe 2.0 - 100Base-FX |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | 100Base-FX |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Data Transfer Rate | 100 Mbps |
| Processor | 1 x Intel 82574 |
| Compliant Standards | IEEE 802.3 |
| System Requirements | Microsoft Windows 2000, Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Novell NetWare 6.5, Microsoft Windows Server 2008 R2, Linux Kernel 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows XP Professional (32/64 bits), Linux Kernel 3.x, Linux Kernel 2.4.x, FreeBSD 9.x |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-FX - LC multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Full-height bracket, half-height bracket |
| OEM Manufacturer Equivalent Part Number | Allied Telesis AT-2711FX/LC-001 |
| Networking | |
| Ports | 100Base-FX |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 1.2 miles |
| Optical Wave Length | 1310 nm |
| Features | VLAN filtering |
| Compliant Standards | IEEE 802.3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2000, Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Novell NetWare 6.5, Microsoft Windows Server 2008 R2, Linux Kernel 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows XP Professional (32/64 bits), Linux Kernel 3.x, Linux Kernel 2.4.x, FreeBSD 9.x |
| Processor / Memory | |
| Processor | 1 x Intel 82574 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 0.9 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 5.2 in |
| Shipping Weight | 8.01 oz |
