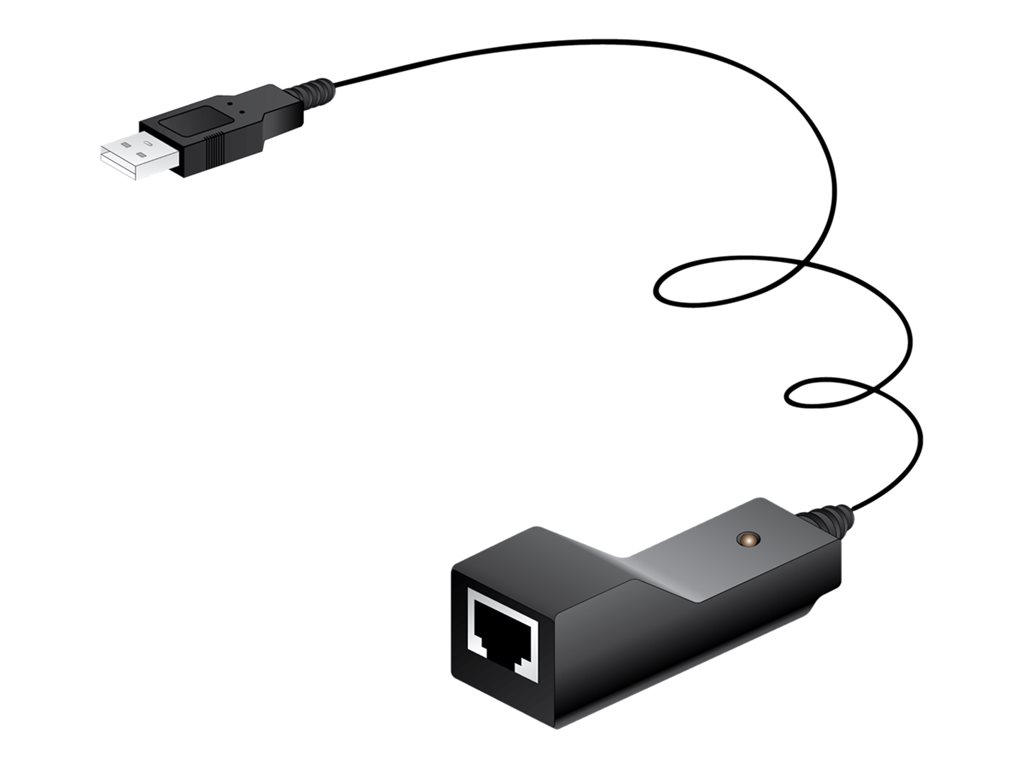

Serial adapter - USB 2.0 - RS-232 - for CentreCOM AT-GS970EMX/20, X530-10, X530L-18GHXM-50, x550-18; SwitchBlade AT SBX81GC40
| Main Specifications | |
|---|---|
| Product Description | Allied Telesis - serial adapter - USB 2.0 - RS-232 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Ports | RS-232 |
| Dimensions (WxDxH) | 2.3 in x 1 in x 0.9 in |
| Weight | 2.12 oz |
| Data Transfer Rate | 115.2 Kbps |
| Compliant Standards | USB 2.0 |
| System Requirements | Microsoft Windows 7 / 8.1 / 10 |
| Designed For | Allied Telesis AT-SBX81GC40; AT x330-10, x330-20, x530-10, x530DP-52; CentreCOM AT-GS970EMX/20, AT-GS970EMX/28, AT-GS980M/52, AT-GS980MX/18, AT-GS980MX/52, AT-SH230-28, AT-x230-28, AT-x230L-17, AT-x330-28, AT-X530-10, AT-X530L-18GHXM-50, AT-x530L-28, AT-x550-18; SwitchBlade AT SBX81, SBX81GC40 |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x USB cable - 4 ft |
| Compliant Standards | Plug and Play, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, ICES-003 Class B, RoHS, EN 55032 Class B, AS/NZS CISPR 32 Class B, VCCI-CISPR 32:2016 Class B, FCC-15 (Class B) |
| Networking | |
| Ports | RS-232 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 115.2 Kbps |
| Status Indicators | Power |
| Features | USB powered |
| Compliant Standards | USB 2.0 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8.1 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 1 in |
| Height | 0.9 in |
| Weight | 2.12 oz |
| Compatibility Information | |
| Designed For | Allied Telesis AT-SBX81GC40 ¦ Allied Telesis AT x330-10GTX, x330-20GTX, x530-10GHXm, x530DP-52GHXm ¦ Allied Telesis CentreCOM AT-GS970EMX/20, AT-GS970EMX/28, AT-GS980M/52PS, AT-GS980MX/18HSm, AT-GS980MX/52PSM, AT-SH230-28GP, AT-x230-28GP, AT-x230L-17GT, AT-x330-28GTX, AT-X530-10GHXM, AT-X530L-18GHXM-50, AT-x530L-28GPX, AT-x550-18XTQ ¦ Allied Telesis SwitchBlade AT SBX81GC40, SBx81XLEM, SBX81XLEM/GT8, SBx81XLEM/Q2, SBx81XLEM/XS8, SBx81XLEM/XT4 |
