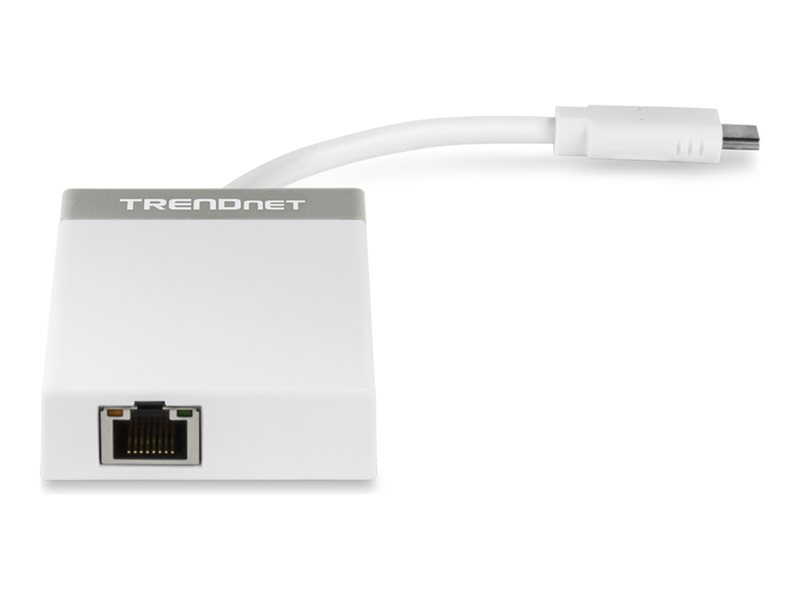

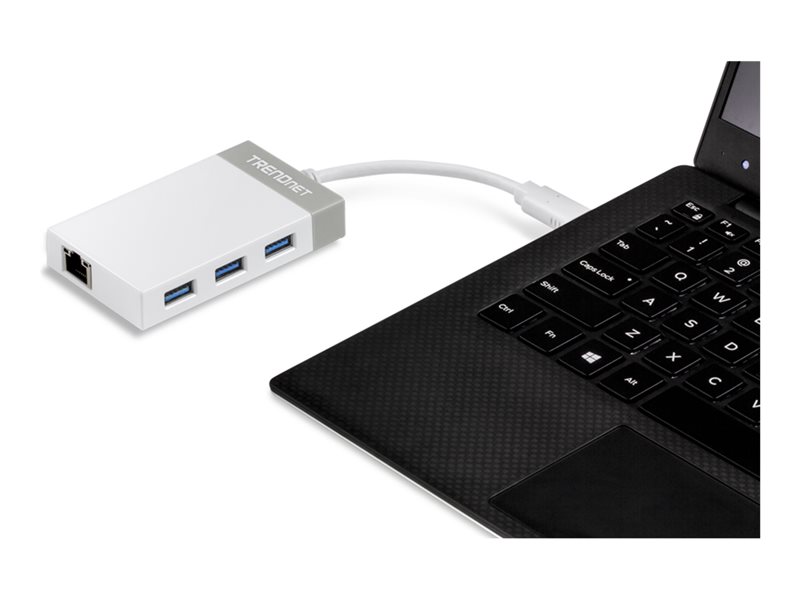

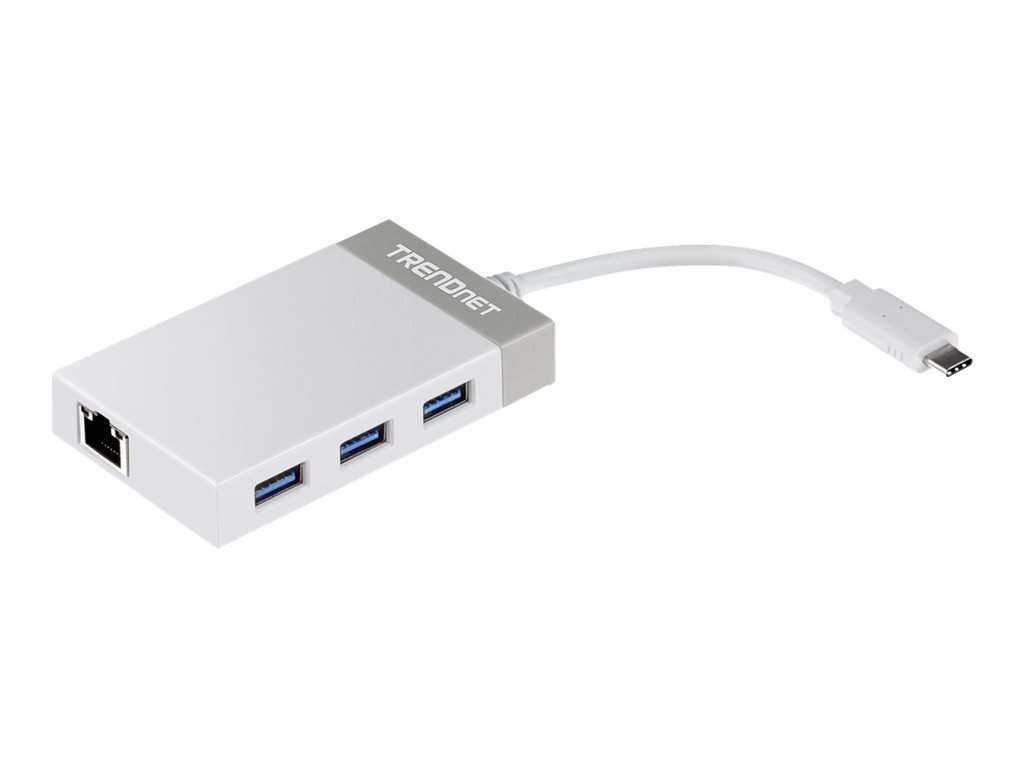

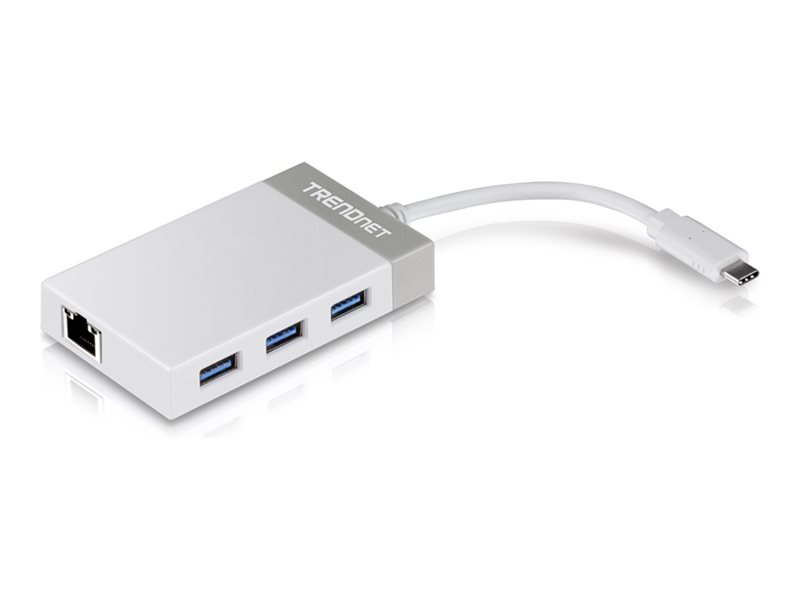

Network adapter - USB-C - 1000Base-T x 1 + USB 3.0 x 3
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TUC-ETGH3 - network adapter - USB-C - 1000Base-T x 1 + USB 3.0 x 3 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C |
| Ports | 1000Base-T x 1 + USB 3.0 x 3 |
| Dimensions (WxDxH) | 3.6 in x 2.2 in x 0.6 in |
| Weight | 1.9 oz |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az |
| System Requirements | Windows 8 / 8.1 / 10, Apple MacOS X 10.9 - 10.13 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 - female ¦ 3 x USB 3.0 - 9 pin USB Type A - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable (integrated) - 5 in |
| Compliant Standards | FCC, RoHS, WEEE |
| Networking | |
| Ports | 1000Base-T x 1 + USB 3.0 x 3 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Link OK, active |
| Features | Full duplex capability, wake on LAN (WOL), GREENnet technology, USB powered, built-in 3-port USB 3.0 hub |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az |
| Power | |
| Power Consumption Operational | 4.5 Watt |
| Software / System Requirements | |
| OS Required | Windows 8 / 8.1 / 10, Apple MacOS X 10.9 - 10.13 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 2.2 in |
| Height | 0.6 in |
| Weight | 1.9 oz |
