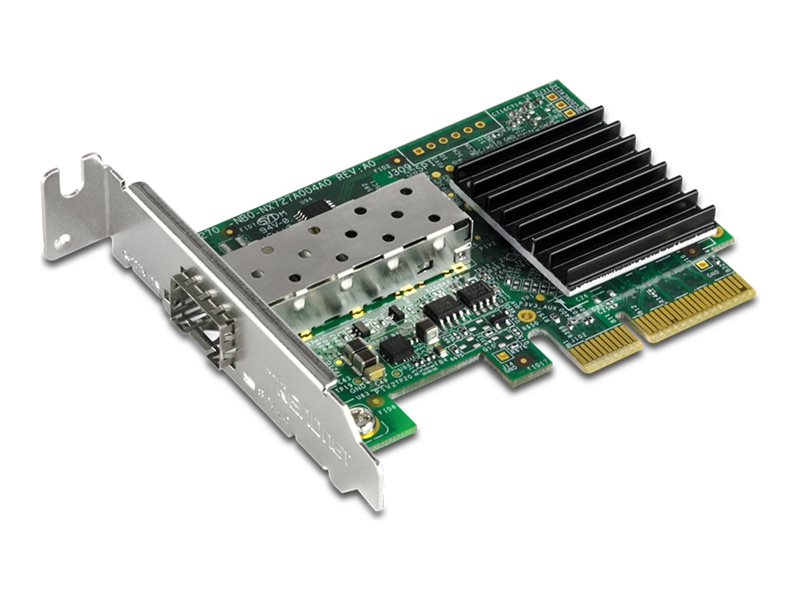

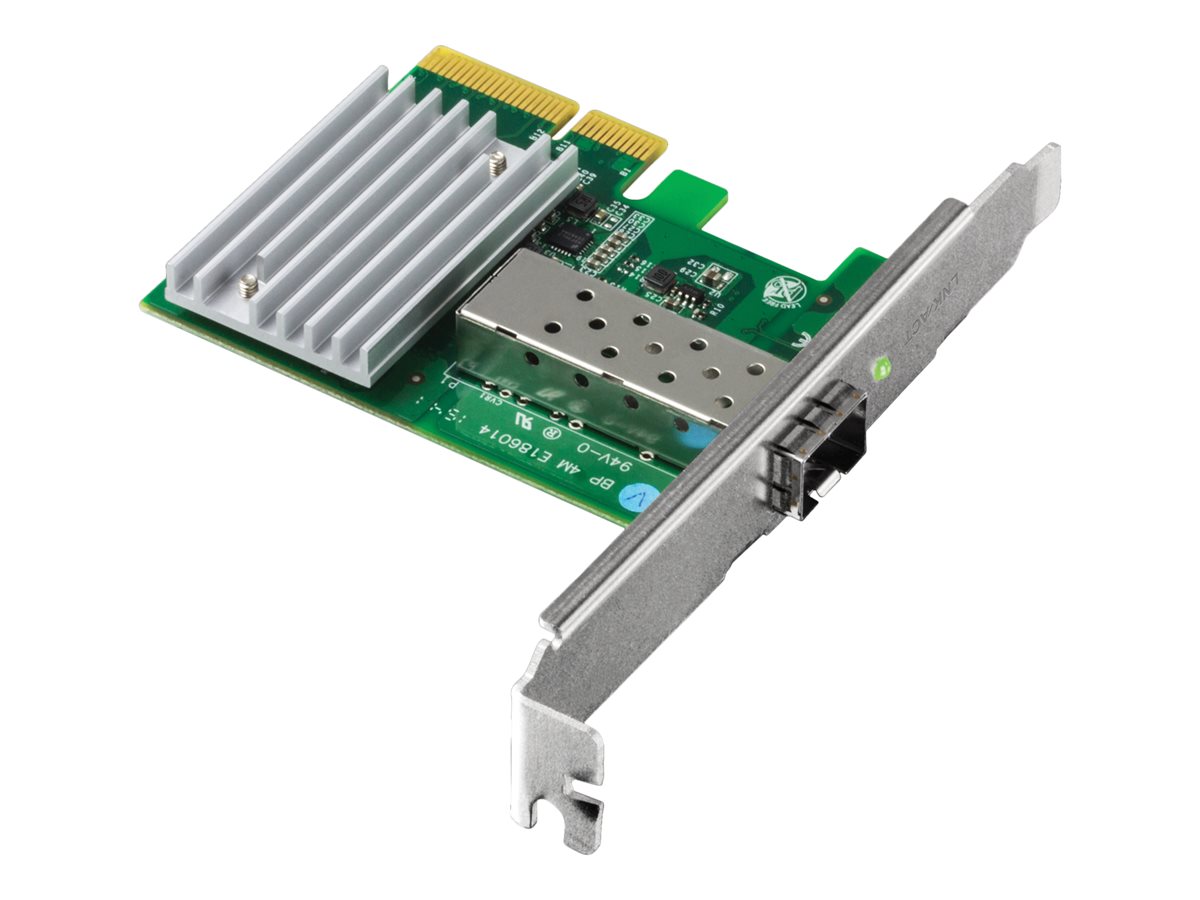

Network adapter - PCIe 2.0 x4 low profile - 10 Gigabit SFP+ - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-10GECSFP - network adapter - PCIe 2.0 x4 - 10 Gigabit SFP+ - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Ports | 10 Gigabit SFP+ |
| Dimensions (WxDxH) | 0.7 in x 3.4 in x 2.5 in |
| Weight | 1.83 oz |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae |
| System Requirements | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, VMware ESXi 6.x |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Full-height bracket |
| Compliant Standards | FCC, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Ports | 10 Gigabit SFP+ |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Status Indicators | Status |
| Features | VLAN support, Jumbo Frames support, tagged VLAN, TCP/IP checksum offload, UDP/IP checksum offload |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Power | |
| Power Consumption Operational | 4.12 Watt |
| Software / System Requirements | |
| OS Required | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, VMware ESXi 6.x |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 3.4 in |
| Height | 2.5 in |
| Weight | 1.83 oz |
