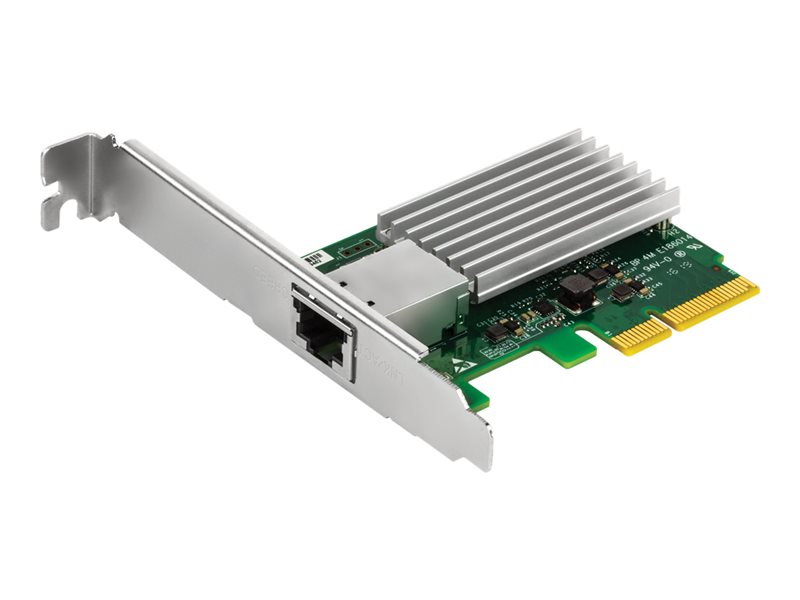

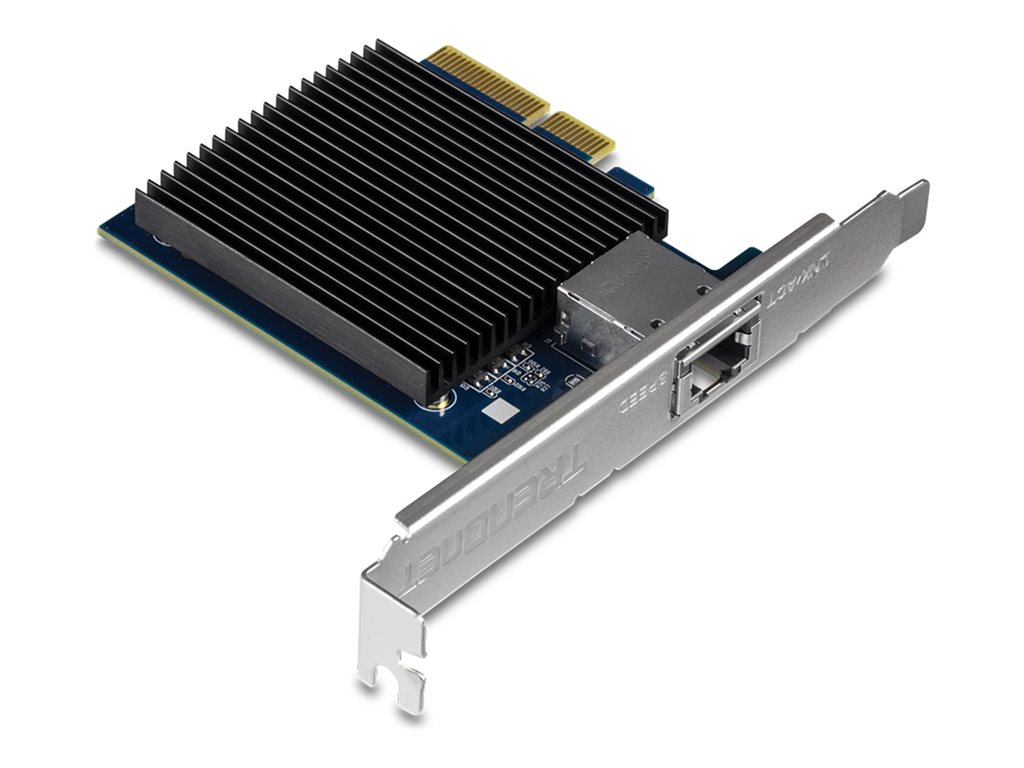

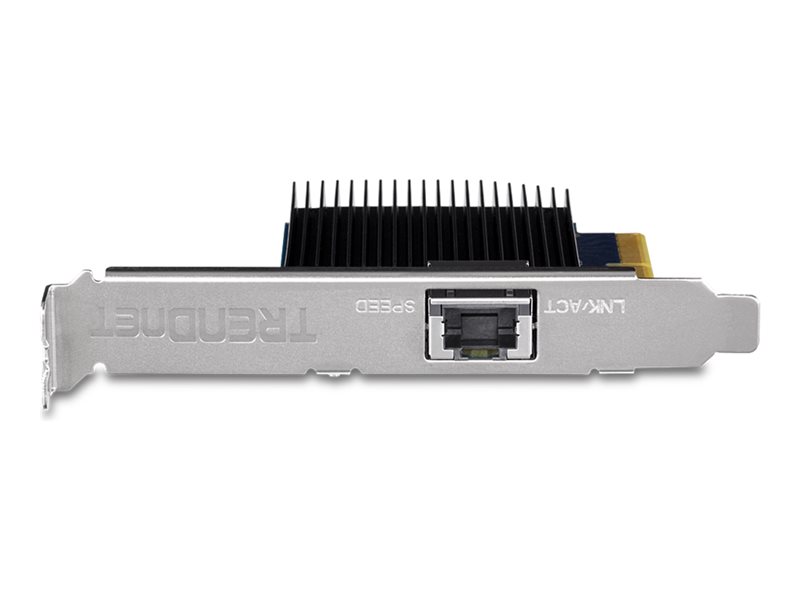

Network adapter - PCIe 2.0 x4 low profile - 10Gb Ethernet x 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-10GECTX - network adapter - PCIe 2.0 x4 - 10Gb Ethernet x 1 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Ports | 10Gb Ethernet x 1 |
| Dimensions (WxDxH) | 0.7 in x 3.3 in x 2.5 in |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
| Data Link Protocol | 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Data Transfer Rate | 10 Gbps |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3an |
| System Requirements | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, VMware ESXi 6.x |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Full-height bracket |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Ports | 10Gb Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | VLAN support, Jumbo Frames support |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3an |
| Power | |
| Power Consumption Operational | 4.12 Watt |
| Software / System Requirements | |
| OS Required | Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, VMware ESXi 6.x |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 3.3 in |
| Height | 2.5 in |
