Vivitek DX883ST
Back to Results
Main Specifications
Product Description
Vivitek DX883ST - DLP projector - short-throw - 3D
Device Type
DLP projector
3D Capable
Yes
Brightness
3300 ANSI lumens
Contrast Ratio
15000:1
Resolution
XGA (1024 x 768)
Native Aspect Ratio
4:3
Lens
Short-throw fixed lens
Lamp Type
240 Watt
Lamp Life Cycle
Up to 3500 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode
Video Input
S-Video, composite video (PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G)
Video Modes
480p, 720p, 1080i, 1080p, 480i, 576i, 576p
Speakers
Speaker(s) - integrated
Power
AC 120/230 V (50/60 Hz)
Power Consumption Operational
310 Watt
Dimensions (WxDxH)
12.4 in x 9.5 in x 5 in
Weight
7.14 lbs
Manufacturer Warranty
5-year warranty
General
Device Type
DLP projector
3D Capable
Yes
Networking
Ethernet
Expansion / Connectivity

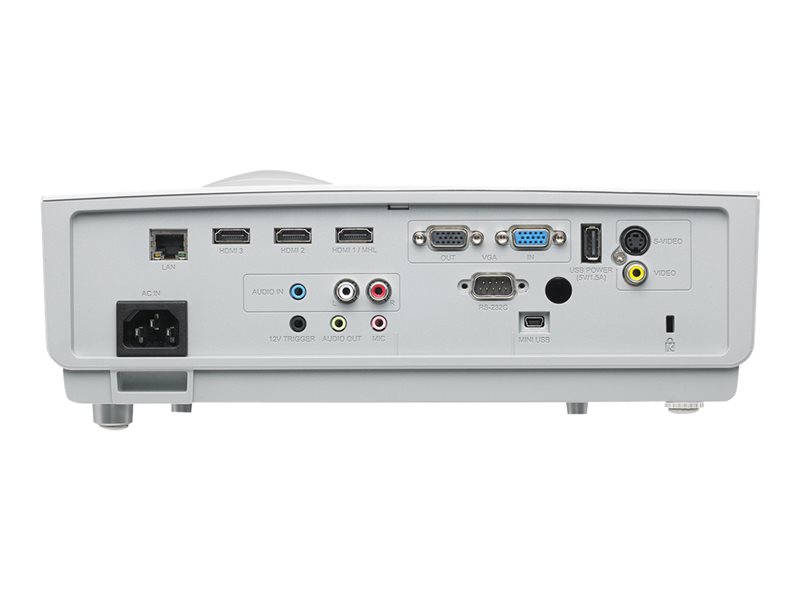

Interfaces
1 x HDMI input - 19 pin HDMI Type A ¦ 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x S-video input ¦ 1 x composite video input - RCA ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x USB - mini-USB Type B ¦ 1 x microphone input - mini-phone 3.5 mm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years ¦ Limited warranty - lamp - 1 year
Miscellaneous
Included Accessories
Lens cover, remote control
Cables Included
1 x VGA cable
Security Features
Security lock slot (cable lock sold separately), security bar, keypad lock
Power
Power Source
AC
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
310 Watt
Power Consumption Stand by
0.5 Watt
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
104 °F
Sound Emission
36 dB
Sound Emission (Economic Mode)
32 dB
Video Input
TV System
PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G
Analog Video Signal
S-Video, composite video
Video Interfaces
VGA, HDMI, composite video, S-Video
Video Modes
480p, 720p, 1080i, 1080p, 480i, 576i, 576p
Dimensions & Weight
Width
12.4 in
Depth
9.5 in
Height
5 in
Weight
7.14 lbs
Projector
Brightness
3300 ANSI lumens
Contrast Ratio
15000:1
Projection Distance
2.5 ft - 4 ft
Throw Ratio
0.626:1
Uniformity
85 %
Resolution
XGA - XGA (1024 x 768) (native) / 1920 x 1200 (resized)
Native Aspect Ratio
4:3
Max Sync Rate (V x H)
120 Hz x 91.4 kHz
Lamp Type
240 Watt
Lamp Life Cycle
Up to 3500 hour(s) - normal mode ¦ Up to 7000 hour(s) - economic mode
Controls & Adjustments
Keystone correction
Features
6-segment color wheel, BrilliantColor, DLP 3D Ready, Filter Free, DynamicEco Mode
Lens
Type
Short-throw fixed lens
Focus Type
Manual
Lens Aperture
F/2.8
Keystone Correction Direction
Vertical
Vertical Keystone Correction
-40 / +40
Speakers
Type
Integrated
Sound Output Mode
Stereo
Output Power / Channel
10 Watt
Speakers
2 x mixed channel
