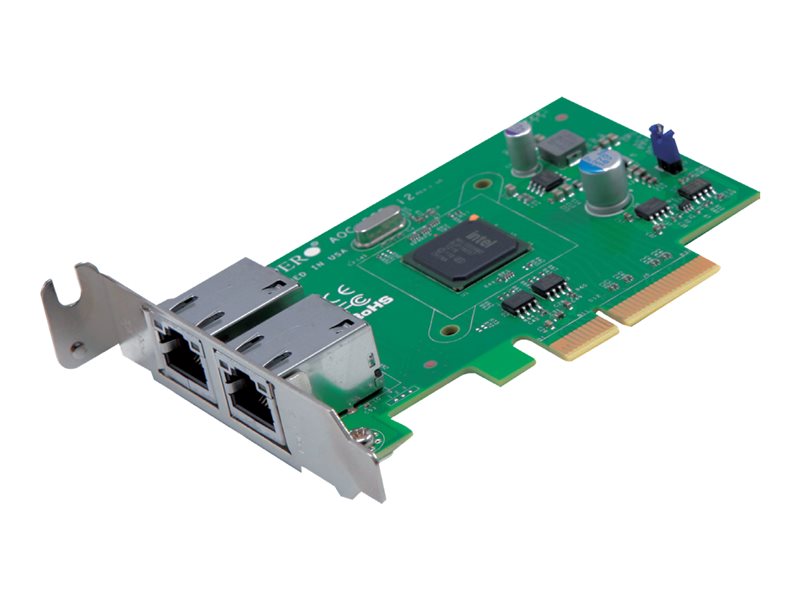

Network adapter - PCIe 2.1 x4 low profile - Gigabit Ethernet x 2
| Main Specifications | |
|---|---|
| Product Description | Supermicro AOC-SGP-i2 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| Ports | Gigabit Ethernet x 2 |
| Dimensions (WxDxH) | 3.9 in x 2.7 in |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Processor | 1 x Intel I350 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| System Requirements | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, VMware ESXi 4.0, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESXi 4.1, VMware ESXi 5, Citrix XenServer |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Ports | Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Features | Flow control, MDI/MDI-X switch, auto-negotiation, packet filtering, QoS, Intel I/OAT, Jumbo Frames support, VMDq, PXE support, RSS, SR-IOV, TSO, checksum offload support, iSCSI remote boot |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Power Consumption Operational | 4 Watt |
| Software / System Requirements | |
| OS Required | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, VMware ESXi 4.0, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESXi 4.1, VMware ESXi 5, Citrix XenServer |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory | |
| Processor | 1 x Intel I350 |
| Dimensions & Weight | |
| Depth | 3.9 in |
| Height | 2.7 in |
